Horizontal Universal Mt5 Spindle Drilling Machine

Product Description

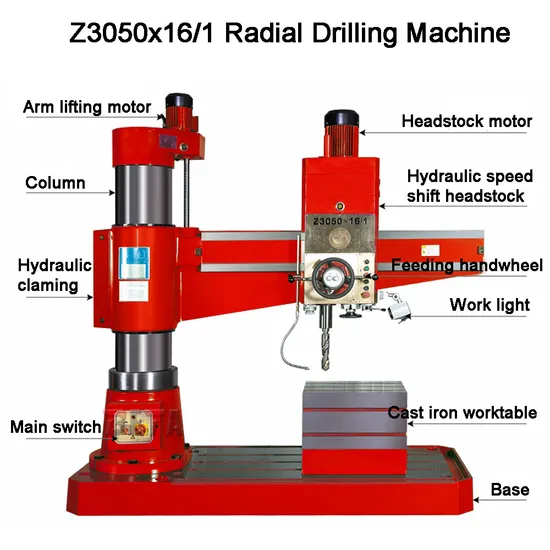

Horizontal Universal MT5 Spindle Drilling Machine

Model	Unit	Z3050x16/1
Max. Drilling capacity	mm	50
Distance spindle axis to column generating line	mm	350-1600
Diameter of column	mm	350
Taper of spindle		MT5
Spindle travel	mm	315
Spindle speeds range	r/min	25-2000
Spindle speeds series	step	16
Spindle feeds range	mm/r	0.04-3.2
Spindle feeds step	step	16
Max. spindle nose to base	mm	320-1220
Dimension of worktable surface	mm	630x500x500
Dimension of base	mm	2400x1000x200
Overal size	mm	2500x1060x2650
Spindle motor power	W	4
G.W/N.W	kg	3400/3650
Packing dimension	mm	2600x1120x2600

Features:
1. The radial drilling machine construction designed elaborately, with pefect appearance and convenient maintenance.
2. The headstock radial arm and column are clamped by manual clamping mechanisms.
3. All controls centrealized on the headstock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power.
4. Main parts are made by machine center which import from KIA with high precision and efficiency, ensuring reliability and high quality.
5. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of materia for basic parts.
6. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability.
7. Main gears are machined by gear grinding, ensuring high precision and low noise.
Standard accessories:
Box shape worktable, Taper sleeve, Tool releasing wrench, Drift, Eyelet bolts
Radial drilling machine is a type of drilling machine where the radial arm can rotate and lift around the column, and the spindle box usually moves horizontally on the rocker arm. When machining holes on a vertical drilling machine, the alignment between the tool and the workpiece is achieved through the movement of the workpiece, which is obviously very inconvenient for some large and heavy workpieces; The radial drilling machine can be aligned by moving the position of the tool shaft, which brings great convenience to machining holes on large and heavy workpieces in single and small batch production.
It can also be called a radial drill. It is a hole processing equipment that can be used for various forms of processing, such as drilling, expanding, reaming, tapping, and scraping the end face. According to the clamping structure of machine tools, radial drills can be divided into hydraulic radial drilling machines and mechanical radial drilling machines. Among various types of drilling machines, radial drilling machines are easy to operate, flexible, and have a wide range of applications. They are typical and particularly suitable for single piece or batch production of holes with large porous parts. They are common machine tools in general mechanical processing workshops.

---
