Product Description
Product Description

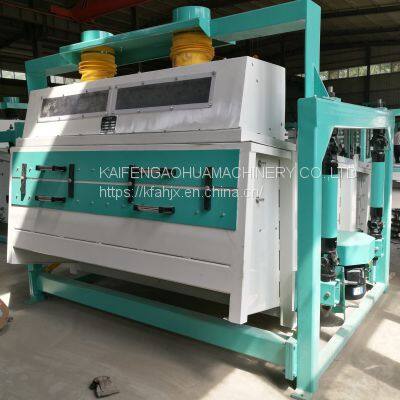

Product introduction: AHXZS high-efficiency rotary vibrating screen is the latest high-tech product developed by our company. It is mainly used for screening and separation of large, medium, small and light impurities in grain. It can be connected to vertical suction duct and circulating air separator. It is widely used in the separation of pellets in rice milling, flour milling, oil refining, feed, food and chemical industries.
Product features: electrostatic rotary vibrating screen with various structural forms for users to choose, convenient and intuitive adjustment of the feeding structure, ensuring that the material is evenly covered on the screen surface, convenient for the screen grid area, vertical pressing of the screen grid to prevent jumping, high efficiency, compact and durable design, Any powder, mucus can be sifted.
| Specifications | AHXZS150x250 | AHXZS200x250 | AHXZS200x360 | AHXZS250x360
|
Initial cleaning wheat processing capacity【t/h】
【Mesh 10-12】
| 40-60 | 80-100 | 100-120 | 120-150 |
| Screening area【m】 | 7.5 | 10 | 14.4 | 18 |
| Speed【r/min】 | 320 | 320 | 320 | 320 |
| Power【KW】 | 3 | 4 | 5.5 | 5.5 |
| Machine weight [kg] | 2800 | 3200 | 4000 | 5000 |
| Dimensions [LxWxH] | 2980x2175x1855
| 2988x2705x2105 | 4040x2605x2205 | 4040x3105x2205 |
>>
