3 Axis CNC Double Head Cutting off Saw for Aluminum Profile

Product Description

Power supply	380v 50hz
Saw head motor	2× 3KW/3000r/min
SERCO MOTOR	2X1KW
CUTTING ANGLE	22.5-157.5° any angle cutting
Working pressure	0.6~ 0.8MPa
C Air consumption	60L/min
Cutting length	Max6000mm
Cutting width	Max 210mm
Max. Cutting slope	45°210×170mm 90°210×345mm
Max. square tube cutting	210×200mm
Cutting angle	any angle
Feeding speed	continuously viable 0-4m/min
Saw blade specification	ø600 × ø30 × 4.4× Z144
dimension	7800× 1500× 2040 mm
weight	2000kgs
Accuracy of repeated fixed length	≤ 0.1mm
Allowance of section cutting angle	± 3'
Flatness of cutting profile	≤ 0.02m
Roughness of cutting profile	Ra12.5μm

Features of equipment:
Mainly used for industrial aluminum profiles,aluminum doors and Windows, curtain wall material cutting, can also be used Cutting of PVC and wood profiles.

The imported high-speed spindle direct connected motor is mounted with diamond saw blade. The saw blade feed is driven by gas-liquid damping cylinder, and the cutting is stable.
High precision imported cutting saw blade, cutting section is smooth, imported servo motor drive reducer,
The cutting Angle can be adjusted between 22.5° and 157.5°.
The import control system can realize advanced functions such as profile optimization and cutting, and can be entered to cut at one time
Cut the size of several profiles, to achieve continuous cutting of different lengths, to achieve direct processing size
In, change the cutting length without returning to the reference point.
There is a saw blade sealing device under the workbench, the chip removal effect is good, with the following opening and closing saw cover, safe
All reliable, good working environment.
Two cylinders in each machine head clamp the profile, cutting safely and reliably.

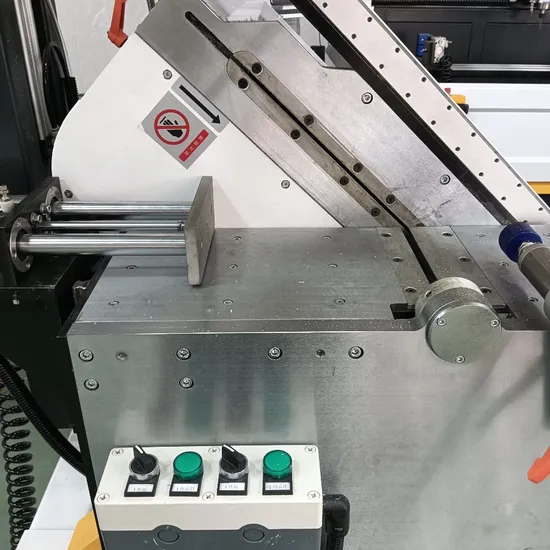

Detailed Photos
