Large Discount Stone Engraving CNC Router Machine (dw1325)

Product Description

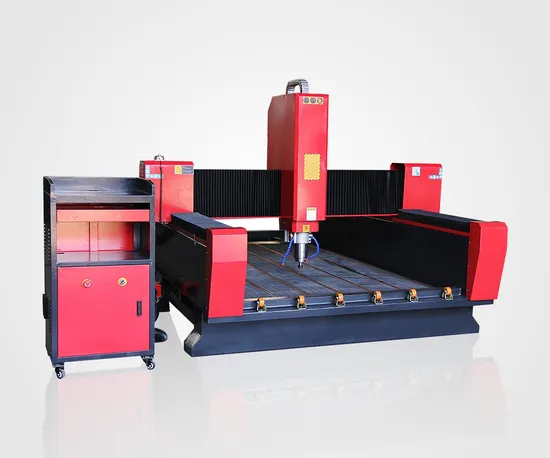

Heavy Marble CNC Engraving Machine (DW1325)
Product Description

This Water Tank Stone Metal CNC Router adopt high power spindle, heavy duty design, can be used for granite engraving and cutting thick aluminum materials, and also use for stone carving and thin marble plate cutting, and can be use widely in other industries.
Water Tank Stone Metal CNC Router has the following features:
1. Technical paramter:

Model	DW1325
Working Area	1300×2500×200mm
Spindle Motor	5.5kw water cooling spindle
Working Mode	Leadshine stepper motor and drivers
Control System	Weihong NK105
Drive Mechanism	Rack and pinion on x,y axis
Table Surface	T-slot table
Frame	wholly steel structure
Motion Positioning Accuracy	± 0.03/300mm
Repositioning Accuracy	± 0.05mm
Max Motion Speed	50,000mm/min
Max Engraving Speed	30,000mm/min
Rotating Speed of Spindle	2,4000rpm
Z-axis setting	Auto Z origin tool sensor
Dictate Format	G code, *.u00, *.mmg, *.plt
Operating Voltage	3phase 380v
Software	Ucancam Type3 Router8 original with Dongle or Wentai (ArtCUT), ArtCAM software
Packing Size	3100*2050*1500mm
Lubrication System	Oil lubrication system
Gross Weight	1200kg
Noise Level	Racing	LAeep dB(A)72±1
Engraving	LAeep dB(A)80±2
Engraving Peak	LAeep dB(C)95
Optional Parts	Dust Collecting System
Mist Sprayer and flume
Rotary device with Dia80mm/100mm/200mm
Nc-studio/Syntec

2. Machine features:
1) Import high precision preloaded backlash ball screw, the movement is generated when clearance to reduce to the smallest.
2) Use the high quality brand drive, faster than the original model improves the nearly 2 meters.
3) Import guide rail, self lubricating block, make each direction force equal to ensure that the mechanical precision and strength.
4) Adopts the breakpoint memory way, to guarantee available in accident (broken knife) or the next day processing.
5) Unique multiple work piece processing origin preservation mode
6) Gantry mobile, strengthen mesa, durable, long time use deformation, better positioning accuracy Plate production not only make carving fine without jagged, basal level off is smooth and contour is clear, and cutting 2 cm organic glass also relaxed freely.
7) Machine body is welded steel tube or whole cast iron,it's up to you.
Except cutting function for alumium and stone engraving , this machine also has the following application:
Advertisement: Engraving and cutting of various labels and number plate, marble, etc for artistic effects on materials including marble, brass, steel, and other metallic material.
Crafts: Engraving characters of any language and patterns on gifts and souvenirs, primitive processing and shaping of artistic crafts, and stiletto.
Moulding: Engraving delicate letter and flower pattern, primitive and fine processing of the small mould.
Architectural models: Engraving fine window, fencing and wall patterns, etc.
Seal: Engraving seals and medal on materials such as buffalo horn, wood etc.
Label: Engraving character, number, and other pattern on label for products and on product directly.
Wood processing: Processing density board, stiletto for surfing board, processing of marbles, cabinet and furniture. After Sales Service

1.24 months quality guaranty, the machine with main parts(excluding the consumables)
shall be changed free of charge if there is any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. We will provide the consumable parts at an agency price when you need replacement.
5. 24 hours on line service each day, free technical support.
6. Machine has been adjusted before delivery.
7. Our staff can be sent to your company to install or adjust if necessary
Before buy please let us know:
If you not sure which model is suitable for your work please provide the following information:
1.What is main products you process?
2.The main material and max length and width.
3.Mainly do engrave or cut, how about the thickness
4.Your destination port, to check shipping price

---
