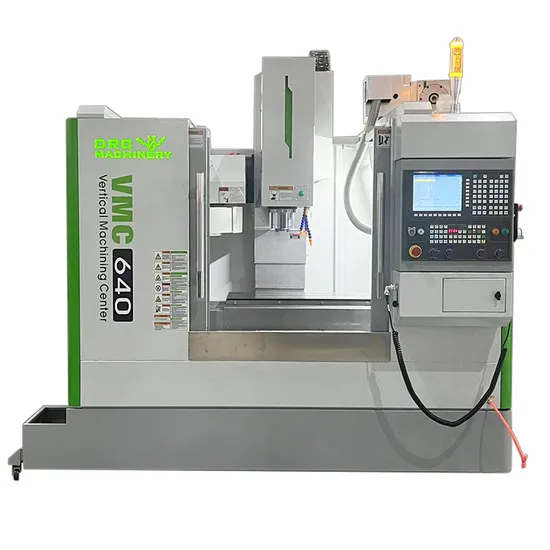

| Machining Center Model | VMC640 (GSK25i system) | VMC600 (GSK25i system) |
| Travel parameters of 3 axis | | |
| X / Y / Zaxis travel | 600 / 400/ 450mm | 500/ 320/ 450mm |
| X/Y/Z Motor Torque | 8/8/15N.m | 6/6/7.7N.m |
| Spindle nose to table surface | 80-530mm | 90-510mm |
| Spindle center to column surface | 350mm | 360mm |
| Worktable | | |
| Table size | 800×320mm | 800×260mm |
| Max.loading | 400kg | 400kg |
| T Shot | 3×16×110mm | 3×16×110mm |
| Feeding parameters | | |
| X/Y/Z axis rapid feed | 24/24/16 m/min | 24/24/16 m/min |
| Cutting feed | 1-10m/min | 1-10m/min |
| Machining Center Spindle parameters | | |
| Main shaft connection | Belt | Belt |
| Spindle taper | BT40-120 | BT40-120 |
| Spindle speed | 8000rpm(Optional:10000 ) | 8000rpm |
| Spindle motor | 3.7KW (Optional:5.5KW ) | 3.7KW (Optional:5.5KW ) |
| ATC paremeters | | |
| ATC capacity | 12qty | 12qty |
| Max.tool dia | Φ92mm(tool from a distance) | Φ92mm(tool from a distance) |
| Max.tool weight | 5kg | 5kg |
| Machining Center Precision | | |
| Position accuracy | ±0.01mm | ≤0.02mm |
| Repeat positioning accuracy | ±0.003/300mm | ±0.008/300mm |
| Shape and weight | | ±0.005mm |
| Machine size | 2600×1950×2400mm | 2600×1950×2400mm |
| Weight | 2800kg | 2500kg |
