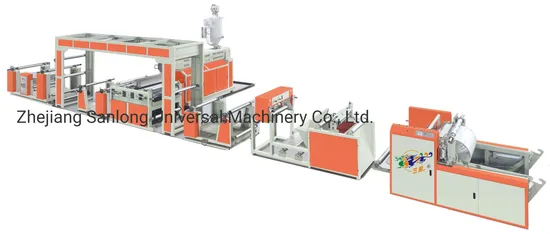

Lamination Machine for PP Woven Bags (Sj-Fmz Series)

Product Description

PERFORMANCE AND CHARCTERISTICS
This machine laminates plastic film or Kraft-paper on the surface of PP or PE woven fabric with the adhesive material at melting status, or laminates color-printed OPP, CPP film to produce compounded bags. This machine is highly automatic featured in advanced workmanship, easy operation, low power-consumption and high efficiency. It adopts double extrusion-dies with compounded double-roller to make even compounding. Its finished products are all high intensity and good performance both in application and appearance. This machine is equipped with auto-correcting device for auto guiding and sending processed material. It is speed-adjustable, easy to operate and adaptable to various sizes of compounded bags.
MAIN TECHNICAL DETAILS
PLASTIC LAMINATION MACHINE IS FORMED BY EXTRUDER ,LAMINATING ROLLERS UNIT, FABRIC CONVEYING UNIT, WINDER UNIT, AUTOMATIC EDGE TRIMMING SYSTEM AND ELECTRONIC CABINET .
ALL ARE MADE IN OUR FACTORY. ITS MAJOR PARAMETERS AS FOLLOWS: 1.MATERIAL OF SCREW: 38CrMoALA 2.DIA OF SCREW :105 mm 3.AUTOMATIC EDGE TRIMMING SYSTEM:
HYDRAUMATIC EDGE TRIMMING DEVICE
4.WITH MIX AND DRYER MACHINE
5.CONTROL SYSTEM: TRANSDUCER&PLC

Type	Die Width (mm)	Die Number	Max. Coated Film Width (mm)	L/D Ratio of Screw	Power of Extruder Motor (kw)	Heating Power (kw)	Coating Speed (m/min)	Installation Dimension (L× W× H)(m)	Weight (kg)
SJ-FMZ1000	1000	2	800	1: 25	11	30	30--180	16× 6× 2.6	6000
SJ-FMZ1400	1400	2	1200	1: 25	15	40	30--180	16× 8× 2.7	7500
SJ-FMZ4800	4800	For more special large working capacity, please contact us.

---
