Mass Production Line Twin-Motor 20liter Vacuum Planetary Centrifugal Deaeration Mixer

Product Description

MACHINE DESCRIPTION

Equipment Overview 20L x 2 Bareels Vacuum Centrifuge Defoaming Dispersing Mixer Vacuum Centrifuge Defoaming Mixer
Model Type:SBT-VTP20000S
------ A mixing device that stirs and disperses the base material and remove the bubbles.


APPLICATION PRODUCT AND INDUSTRY

LED Sealing&Package	Silicone Rubber	Polymer Material	Epoxy Resin	Ink	LCD
Adhesive	Cathode&Anode Material for Li-ion Batteries	Silver Paste	Pharmaceutical	Conductive Paste	Laboratory

Main Application Field: Light-emitting diode (LED), touch screen (TP), medical equipment, electronic components, nano-powder materials, fine chemical materials, printed electronic materials, electronic packaging materials and new energy materials such as high, sharp, precision products Mixing and stirring of materials.
The Material can be mixed: fluorescent powder,silicone gel, silver paste, aluminum paste, adhesives, ink, silver nanoparticles,silver nanowires, LED/OLED/SMD/COB conductive silver paste, insulating adhesive, RFID printed conductive ink , Anisotropic conductive adhesive ACP, conductive paste for thin-film solar cells, conductive ink for PCB/FPC, cosmetics, etc.
APPLICATION PRODUCT AND INDUSTRY

LED Sealing&Package	Silicone Rubber	Polymer Material	Epoxy Resin	Ink	LCD
Adhesive	Cathode&Anode Material for Li-ion Batteries	Silver Paste	Pharmaceutical	Conductive Paste	Laboratory

Product Parameters
EQUIPMENT SPECIFICATION

Type No#	SBT-VTP20000S
Name	Centrifugal Stirring Defoaming Machine
Application range	Design,machine process,spraying ,printing,glass,solar energy,laboratory...
Mixing Method	Vacuum Revolution/ rotation.The ratio can be adjustable, no contact mixing.
Mixing Chamber	Double Chamber

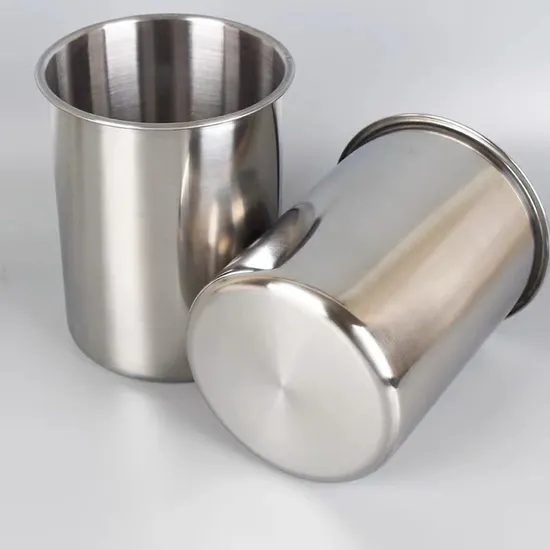

Standard Container	304stainless steel
Container capacity	20L x 2Barrels
The Max. capacity of mixing material	10L x 2Barrels (15kgs/ 20L)
Operation type	Human-machine interaction mode
Revolution speed	600RPM (50-600RPM can be adjustable)
Rotation speed	Invariableness
Vacuum degree(absolute value)	Can be set in 101.3Kpa - 0.1Kpa
Vacuum capacity	0.1Kpa within 100seconds
Storage Program	5 storage programs(each program can be set to 5steps)
Protection	Door cover,Breakdown, overload
Specification	1590*1240*1000(mm)
Machine Weight	820KG
Working Environment	10~35 celsius degree; Humidity: 35~85%
Power Supply	380V;12KW;3Phase 5 Wire.

PACKING&SHIPPING

Company Profile
OUR ADVANTAGES
1.By rotation and revolution at the same time, the material can be evenly stirred and mixed without delamination;
2.Using a strong agitation of about 400G, uniformly dispersing and simultaneously removing submicron-sized bubbles inside the mixture;
3. No spiral blades, no need to clean, no pollution of raw materials;
4.Does not damage the shape of the material (cellulosic material and powder);
5.The product specifications are complete enough to deal with all aspects from R&D to production process;
6.Applicable to the mixing of most materials, especially for the mixing of high viscosity materials, can greatly improve its efficiency;
7.PLC + touch screen control mode, can store 10 groups of data, each group of data can be divided into 5 segments to set different time, speed, vacuum and other parameters, can cope with the stirring and defoaming requirements of various materials.
8.Extremely easy to operate. FAQ Q1.Which procedure to secure your Quality?
A1: Our company has own research & development and production base, the products will be profassionally tested before loading to ensure the accuracy of test results and authority.
Q2.How about your company product after-sales service system?
A2:Product after-sale guarantee period is 12 months,and we can provide free consumable parts within 1 year. And our professional pre-sales and after-sales department can reply you within 24 hours for any technical problems.
Q3.Payment methods?
A3:T/T, L/C, D/P and so on.
Q4.Packing method?
A4:Vacuum film shrink and Standard export wooden box packaging.
Q5.How about customers evaluation for your products?
A5: Our services get the trust of the customer satisfaction and recognition for themselves.
Q6.Main export market?
A6:Now our products have been exported to North America, Europe, southeast Asia, South America and other countries.
Q7.How to ensure the customer standard use the instrument?
A7:We can provide each product related video showing how to install and operate.If you have specific needs, we also can arrange engineer to the customer's company for equipment operation training.

---
