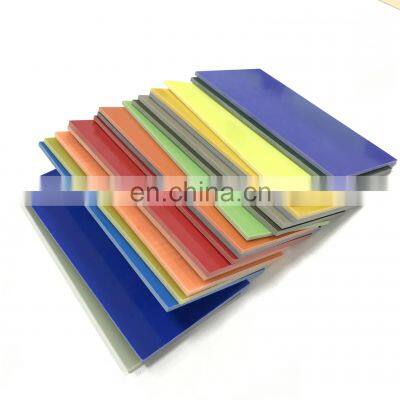

Colorful New Energy Board G10 insulation laminated sheet

Product Description

Product Description
Product Description Colorful New Energy Board G10 insulation laminated sheetG10 Laminate Fiberglass Sheet is a board-shaped insulating material made of glass fiber cloth impregnated with epoxy resin as an adhesive, dried and hot-pressed. It has high mechanical properties, water absorption, flame retardancy and heat resistance, and the dielectric properties are stable after immersion in water. Suitable for products with high performance electronic insulation requirements, such as fpc reinforcing plate, pcb drilling pad, glass fiber meson, potentiometer carbon film printed glass fiber board, precision planetary gear (wafer grinding), recision test plate, electrical ( Electrical appliances) equipment insulationstay partitions, insulation pads, solar panels, transformer insulation boards, motor insulation parts, grinding gears, electronic switch insulation boards, etc.NO.PROPERTIESUNITStandard value1Flexural strength perpendicular to laminationsA: Under normal conditionsE-1/150: Under 150±5℃MPa≥ 3402Notch Impact strength parallel to lamination (charpy)kJ/m2≥ 333Dielectric strength perpendicular to lamination (in oil 90±2℃) 2.0mm in thicknessMV/m≥ 14.24Breakdown voltage parallel to lamination(in oil 90±2℃)kV≥ 355Dielectric coefficient (1MHz)-≤ 5.56Loss factor (1MHz)-≤ 0.047Water absorptionD24/23, 1mm in thicknessmg≤ 198Insulation resistance impregnated in water, D-24/23Ω≥ 5.0×1089Densityg/cm31.90-2.1Product UsageRelated ProductsCompany IntroductionShenzhen Xiongyihua Plastic Insulation Limited was established in 2006 in Shenzhen, after more than decades of continuous efforts, has developed into a professional integrated manufacturer of specializes in production and development Engineering Plastic and Insulation Plastic ,is the most complete varieties. We have automatic dipping production lines, CNC carving machine and laser engraving machine, along with several saws, milling, planing,grinding, drilling, tapping, punching, cutting and other machininglarge production equipment. Our main products :1.Insulation Plastic Series : 3240/FR-4/G10 Epoxy Fiberglass ,Bakelite,3025 Phenolic Cotton Cloth Laminated,3021 Phenolic Paper Laminated,High Voltage Insulation Plastic.2.Engineering Plastic Series: PA6/MC Nylon ,POM, PTFE,PVC,PE,PU,Acrylic,ABS and so on.3. Insulation Machining Parts Series : Customized according to the customers' drawings and designs,welcome to contact us for more details.

---
