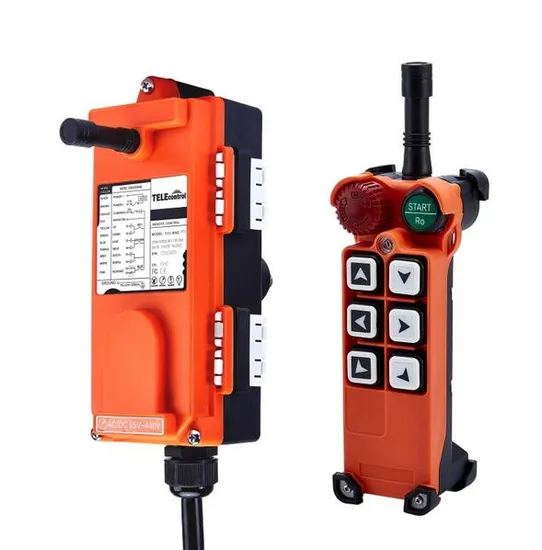

Telecontrol F21-E1 6 Channel Industrial Radio Remote Control

Product Description

F21-E1 3 motions 6 singe pushbuttons crane RF wireless radio remote control Note:1. The standard configuration includes 1 transmiter and 1 receiver (1TX+1RX), and 2TX+1RX is available too, or even more transmitters work with 1 receiver2. There are different working voltage to choose, and adopts the wide range volgae:AC/DC24-48V or 100-440VDC12V can be customized.
Features:
High cost-efficient, reliable and durable 8 operation buttons, 6 single speed Push buttons ,1 EMS "STOP", 1 start button, and 1 rotary switch Program the button function by computer interface(software and cable is optional) Glass-fiber PA for extra shock resistance. Wide working voltage input: AC/DC 24-48V or AC/DC 100-440V (depending on clients' need), 12VDC is available Operating distance up to 100 meters, extendable with extra antenna High level Enclosure protection class IP 65 Temperature range - 40 ° C~ + 85° C Transmitter with working power led indicator Transmitter with housing for extra shock resistance and shoulder strap cord Low cost for electronic chain, hoist/monorail Standard AA alkaline batteries(not included) Low power consumption transmitter, 2AA batteries last up to 4 months With battery voltage warning device, the power supply is cut off during low power Over 4.3 billions unique ID code available Hamming code Enhanced watch-dog circuit The series S/No. and production date are laser making of anti-counterfei

F21-E1 Transmitter Parameters
Material			Glass-Fiber PA
Enclosure protection class			IP65
Frequency range			VHF: 310-331 MHz; UHF: 425-446 MHz
Transmitter power			≤10dBm
Transmitter power supply			2 AA alkaline batteries (not included)
Safety code			32 bits (4.3billion)
Temperature range			-40ºC-+85ºC
Control distance			up to 100 meters (it is available to customized long distance up to 200m)
Size			156x61x51mm
Weight			255g (without battery)
F21-E1 Receiver Parameters
Material			Glass-Fiber PA
Enclosure protection class			IP65
Frequency range			VHF: 310-331 MHz; UHF: 425-446 MHz
Receiver sensitivity			-110dBm
Receiver power supply			18~65V AC/DC; 65~440V AC/DC (optional)
Safety code			32 bits (4.3billion)
Temperature range			-40ºC-+85ºC
Cable length			1.65m (Other length can be customized)
Output contactor capacity			8A sealed relay output (with AC 250V/10A relays, 10A fuse)
Size			205x86x80mm
Weight			620g

Application:
Wireless remote controls are widely applied for lifting equipment, construction machinery, cargo loading/unloading machines, Concrete Pumps, PLC Integration, Industrial automation control, Tower Cranes, Tow trucks , Vehicle,Mobile Equipment, Conveyor Control liftswater supply system, data transmission, door control, theiron-smelting and steel-making, the automobile manufacturing, paper-making and chemical industry, steel structure processing, galvanization, shipbuilding, railroad, bridge, tunnel construction and other equipment and sites which can be worked by radio controls.

---
