Outdoor Optical Cable/Communication Optical Cable/Network Optical Fiber/Self-Supporting Cable

Product Description

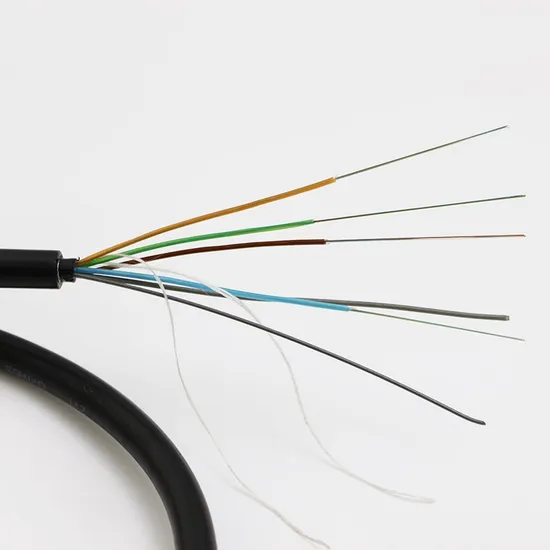

Product Description:Outdoor optical fiber cable: outdoor optical fiber cable, simply speaking, is a kind of optical fiber cable. Because it is most suitable for outdoor use, it is called outdoor optical fiber cable. It is durable, can withstand the wind, the sun, the cold and the cold, and has thick outer packaging, and has some mechanical and environmental characteristics such as pressure resistance, corrosion resistance, tension resistance.
Layered fiber optic cable: Layered fiber optic cable is a round cable core formed by a number of reinforcing members around the center of the sleeve containing the fiber. The metal or non-metal reinforcement device is located in the center of the optical cable, and the loose tube containing the optical fiber is arranged around the reinforcement.
Self supporting outdoor optical cable: also known as "self supporting optical cable", it refers to a kind of cable that combines the load bearing object with the cable or optical cable as a whole. For example, in optical fiber communication, it is used for optical cables on high-voltage transmission line towers. The full name of self-supporting optical cable is all dielectric self-supporting optical cable, which means that the self reinforcing member of the optical cable can bear the self weight and external load. Because it is self-supporting, its mechanical strength is very important; All dielectric materials are used because the optical cable is in a high-voltage and strong current environment and must be able to withstand the impact of strong current; As it is used overhead on power poles and towers, supporting equipment must be provided to fix the optical cable on the poles and towers. It is applicable to long-distance communication and inter office communication.
Key words:
Outdoor optical cable, communication optical cable, network optical fiber, stranded armored optical cable, outdoor armored rubber wire optical cable, carrier grade self-supporting bundle optical cable, self-supporting outdoor optical cable, outdoor incoming communication cable, stranded optical cable, double sheathed overhead direct buried optical cable, stranded outdoor communication optical cable.
Main applications:
It is mainly used for network engineering installation, communication machine room, optical fiber junction box, optical fiber cabinet, optical fiber connection, etc.
Product features and advantages:
1. High speed transmission: stable anti-interference transmission is faster and more stable;
2. Low smoke, halogen-free flame retardant sheathing material: PE thickened sheathing is used, which has good heat resistance and is more practical for integrated molding;
3. Tensile and bending resistance, strong practicability: the optical cable has good tensile and twisting performance, can be installed in a compact space, and has bending performance;
Technical parameters:

Name	GYXTW outdoor optical cable
Allowable tensile strength	1200N
Number of cores	8
Outer diameter	7mm
Weight	55kg/km
Side pressure	1000N

Name	GYTS, GTYA stranded optical cable
Strength	600N-1500N
Number of cores	4-288
Outer diameter	9.1-17.5mm
Weight	100-305kg/km
Specifications	G652,50/125,62.5/125
Side pressure	300-1000N/10cm(N/100mm)

Name	GYFTY layer twisted optical cable
Strength	600N-1500N
Number of cores	4-144
Outer diameter	8.0-14mm
Weight	70-230kg/km
Specifications	G652,50/125,62.5/125
Side pressure	300-1000N/10cm(N/100mm)

Name	GYTC8Y self-supporting outdoor optical cable
Number of optical fiber cores	2-24
Outer diameter of optical cable	7.2-13.5mm
Weight	70-150kg/km
Allowable tensile strength	300N-600N
Allowable side pressure	300-1000N/10cm(N/100mm)

Name	GYXTY self-supporting outdoor optical cable
Number of optical fiber cores	2-24
Outer diameter of optical cable	6.0-9.0mm
Weight	38-78kg/km
Allowable tensile strength	300N-600N
Allowable side pressure	300-1000N/10cm(N/100mm)

Name	GYTC8S self-supporting outdoor optical cable
Number of optical fiber cores	4-144
Outer diameter of optical cable	9.4-16.5mm
Weight	150-600kg/km
Allowable tensile strength	300N-600N
Allowable side pressure	300-1000N/10cm(N/100mm)

Main Cooperation Materials Manufacturers:
CORNING, OHARA, SCHOTT, LEONI, AGC,HELLMA, NIKON,VITRON,C-LASER,ETC
Main Export Countries & Areas:
Usa, Uk, Japan, Germany, Spain, France, Swiss, Korea, Russia, Pakistan, India, Portugal, Canada, New Zealand, Australia, Saudi Arab, Turkey, Finland, Poland ,etc.
Raytekoptics Extra value added services offered:
1). Optical workcraft & process solution design;
2). Rough processing raw materials;
3). Semi finishing raw materials;
4). Fabricate custom sizes and shapes;
5). Design and supply custom coatings;
6). Modify and resurface customer supplied materials;
7). Drill holes, notch glass and provide beveled substrates;
8). Precision polish optics with non-standard aspect ratios;
Payment Method: by T/T or Western Union.
Delivery time: 7-10 days.
Quality Warranty: Ruitaiphotoelectric(Raytekoptics) offers quality warranty for our optics products with "3R" policy. For any inferior-quality products, Ruitaiphotoelectric(Raytekoptics) is responsible for return, replacement and refund.

---
