Industrial Mining Centrifugal Sand Dredging River Dredge High Pressure Submersible Water Pump with Water Jet

Product Description

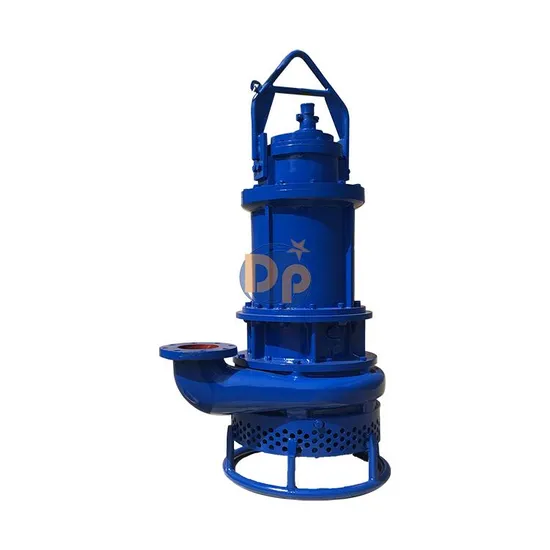

Sand Dredging Sand Suction River Dredge Pump
The Depump® SS series submersible slurry pump is a kind of hydraulic mechanism which motor connects directly with pump. It is used for delivering liquid contained sand, coal conder solid etc..
The pump can be mainly employed in clearing the mud in lake, river, sea and widening channel etc.
It also can be applied to clear out sewage pool; in building site, steel wokrs and power station and
so on, the pump adopts excllent material, advanced structure, and it is with wide flowing passage & strong delivery ability. The hydraulic parts are wear-resistant. The pump is completed with control unit.
Features
• 27% chrome white iron impeller.
• 27% chrome white iron integral agitator.
• 27% chrome white iron volute.
• Replaceable 27% white iron back plate.
• 420 stainless steel shaft
• 420 stainless steel shaft sleeve.
• 420 stainless steel stainer.
• All fasteners 420 stainless steel.
• Large cut water casing clearance.
• Low speed electro-submersible motor provides reliable continuous operation.
• Motor incorporates thrust bearing temperature and moisture sensors.
• F class motor insulation as standard, with optional H class insulation available for reliable operation
in high temperature applications.
• Heavy duty cast iron motor construction.
• Heavy duty mild steel support frame with round base provides excellent stability.
• Double mechanical seal with carbon/ceramic on wet end and tungsten/ceramic on the drive end
provide effective sealing between motor and wet end.
• Mechanical seals are oil bath lubricated.
• External cooling options available.
• Available with a wide range of protective oatings and paint options.
• Oil chamber incorporates a water leakage probe which detects when water-to-oil ratio is too high
and cuts off power to prevent motor damage due to oil contamination.
• Motor incorporates a float switch in the bottom to detect the ingress of water and cut power to
prevent motor damage. Motor stator incorporates shutdown temperature control sensors which
automatically detect excessive motor temperatures and shut motor down to prevent damage.
• World wide backup and service.
Applications
Transfer of waste water, effluent and solids laden water for:
• Building Services
• Sumps and Basements
• Mining
• Civil Construction
• Industry
• Municipal
• Processing
• Water Treatment
Pump Details
Structure Of Pump
Materials

NO.	Description	Standard Material	Material Options
1	Support Frame	Mild Steel
2	Strainer	420 Stainless Steel
3	Pump Casing	Cr27 White Iron	SS316, A49,CD4MCu
4	Back Plate	Cr27 White Iron	SS316, A49,CD4MCu
5	Impeller	Cr27 White Iron	SS316, A49,CD4MCu
6	Agitator	Cr27 White Iron	SS316, A49,CD4MCu
7	Oil Chamber Housing	Cast Iron
8	Shaft	420 Stainless Steel
9	Shaft Sleeve	420 Stainless Steel
10	Wet End Mechanical Seal	304 Stainless Steel
11	Motor Mechanical Seal	304 Stainless Steel
12	Motor Casing	Cast Iron
13	Motor Cooling Jacket	Fabricated Mild Steel
14	Lifting Brace	Mild Steel
15	Bearing Covers	Cast Iron
16	Oil Chamber Cover	Cast Iron

Performance Table

Model	Capacity (m3/h)	Head (m)	Motor Power (kw)	Speed (RPM)	Max.solid Dia.(mm)
SS30-30-7.5	30	30	7.5	2850	7
SS50-26-11	50	26	11	1460	21
SS50-30-11	50	30	11	1460	19
SS70-20-11	70	20	11	980	24
SS100-18-11	100	18	11	1460	21
SS25-40-11	25	40	11	1480	13
SS150-15-15	150	15	15	980	32
SS40-40-18.5	40	40	18.5	1480	13
SS100-25-18.5	100	25	18.5	980	24
SS38-45-18.5	38	45	18.5	980	13
SS60-34-18.5	60	34	18.5	970	13
SS90-30-18.5	90	30	18.5	980	24
SS150-22-22	150	22	22	950	31
SS200-15-22	200	15	22	950	44
SS60-46-22	60	46	22	980	13
SS100-35-30	100	35	30	980	34
SS150-30-30	150	30	30	980	35
SS240-20-30	240	20	30	980	40
SS100-50-37	100	50	37	1480	24
SS140-40-37	140	40	37	1480	24
SS300-20-37	300	20	37	980	69

*****More pump models please contact us*****
Our Advantages Factory direct price Professional knowledge and attentive service Strict quality inspection and timely delivery Highly value every order, no matter how small it is. offer confidentiality agreement "business secret contract" Product warranty:lifetime, no matter how long to use,if there is air hole in the flow parts,please return it,will give you a new one to replace. FAQ
Q: What kind of company you are?
A: Shijiazhuang Depon Pump Company is professional manufacturer in pumps. After accumulation and development of many years, we have formed a complete system of pump design, selection, application, manufacture, marketing and maintenance. We have passed CE, SGS certificate. Our customers are at
home and abroad. Hope to coorperate with the worldwide friends.
Q: What's your MOQ?
A: Trial sample order is OK.
Q: What are your payment terms?
A: T/T, L/C, D/P, D/A or as customer required
Q: How about the warranty?
A: One year warranty for pumps, it depends on other pump working condition details.
Q: What is the delivery time?
A: 7-30 days according to customer quantities.
Q: Can you do OEM brand?
A: Yes, Welcome.

Q: What information should I offer to get pump solution?
1, Head: m
2, Flow: m3/h
3, Max Solid size: mm
4, Particle shape (smooth or sharp):
5, Medium pH level:
6,Specific Gravity of the Medium:
7, Temperature:
8, Drive type:
9. Power supply: Electric or Dlesel
10, Voltage and Frequency of the Motor:
