Product Details
Product Description
Product Description
1-Application:

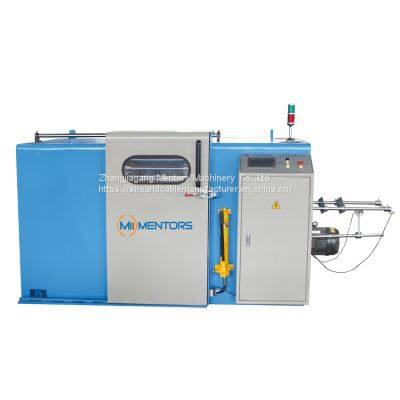

This type machine is mainly used for annealed twisting copper wire.
2-Feature:
1)Types: 300,500,630,800
2)Max speed: 2500-3000r/min
3) Raw material: copper wire, tin coated wire
4) Twisting type: double twist
3-Main Specification:
Machine type
| SY-300P
| SY-500P
| SY-500P/B
| SY-650P
| SY-800P
|
Use
| For bunching bare copper, tinned wire, enameled wire
|
Control type
| PPLC+HMI+Inverter control
|
Twisting section area((mm²)
| 0.035~0.45
| 0.05~2.50
| 0.05~4.00
| 0.18~6.00
| 2.50~16.00
|
Copper wire dia.(mm)
| 0.05~0.25
| 0.10~0.45
| 0.10~0.52
| 0.18~1.00
| 0.50~1.20
|
Twisting direction
| S or Z
|
Take-up tension
| tension controlled by magnetic clutch
|
Max main shaft speed
| 3000r/min
| 3000r/min
| 2500r/min
| 2000r/min
| 1200r/min
|
Bobbin loading&unloading type
| Hydraulic type
|
Max bobbin dia.
| 300
| 500
| 500
| 630
| 800
|
Auto stop unit
| While reach setting length, inside outside wire break, or other error auto stops
|
Brake
| Magnetic brake
|
Motor power(KW)
| 4
| 5.5
| 5.5
| 7.5
| 11
|
Main shaft center height
| 630mm
| 700mm
| 700mm
| 850mm
| 900mm
|
4-Advantages:
1) More stability, high production efficiency, low noise and easy to operation.
2) Spring bow can prolong the life.
>>
