Corrugated Paperboard Prodcution Line Machine Cost

Product Description

§ Function §
Working principle editor
This line is the corrugated board production line referred to, is the reel base paper after pressing corrugated, glue, bonding set, sub-paper pressure line, cross-cut into the specifications of cardboard, and finally by the code output and other processes constitute the assembly line. Such as single-sided corrugated paper production line is usually composed of web holder, single-sided corrugated cardboard forming machine, rotary paper-cut unit, the use of web materials and potato or corn starch adhesive, continuous production and cut into the required specifications of the single Surface corrugated cardboard, the production of cardboard does not have to dry or dried, and glue machine or veneer with the use of three layers can produce more than corrugated cardboard.
Structural editing
Wet end equipment configuration
In the whole corrugated board production line wet end equipment is the key equipment of corrugating molding, mainly related to the base paper, glue, steam, and other factors on the impact of paper forming quality, so to solve the problem is the quality of cardboard. Wet end of the key equipment single-sided corrugated machine should choose advanced technology equipment, positive pressure cassette single-sided machine. The value of the adjustable gap shows that the control of the size of the coating is of the utmost importance.
Cadre equipment configuration
In the cadre equipment, the slitting machine is the equipment that affects the efficiency of the work, its choice is very important. Slitting machine in the knife should be used to move, and in the purchase of Taiwan tile line to take into account the cutting knife, pressure wire guide dust treatment, because in actual use, the knife will fall on the smooth dust On the cause of the knife or pressure wheel in the row when the knife is difficult to move, and often stop the phenomenon. The minimum spacing between the crimping wheels should ensure that the 50mm knife line positioning mode, row knife precision of the actual value, and some manufacturers have claimed to be able to achieve + mm but in practice there will be 1-2mm error, so the staff Often detected, inefficient; pressure wheel in several ways, you can adapt to the requirements of multi-medium-pressure line type.
Production management system
Production management system in addition to the production site with the monitoring, to have a complete production data collection, statistics, print output. For example: the production schedule prints, the production of paper for the single printing, the production label printing. The production label requires the buyer and supplier to request the output form in line with the format of the manufacturer, and in the purchase of the production management system to function, and many cases are not configured, and later need to spend money to buy.

§ The Main Technical Parameters §

Parameter	Model
	3 layers	5 layers	7 layers
Processing width	1400~2500 mm
Working Speed	50~150 m/min
Equipment Height	About 3.8m	4.5m	5.2m
The total length of the line	About 30~50m	90m	105m
The total power consumption	About 200KW	350KW	450KW
Heating mode	Heat transfer oil,steam
The steam consumption	2~2.5T/h	3~3.5T/h	4~4.5T/h

Type of Corrugation	A	B	BC	B
Shape of Corrugation	UV
No. of Corrugation	34±2mm	38±2mm	46±2mm	50±2mm
Highness of Corrugation	4.6~5.0	3.6~3.9	3.0~3.5	2.6~2.9
Diameter of Roller	215~310mm
Length of Roller	Customized

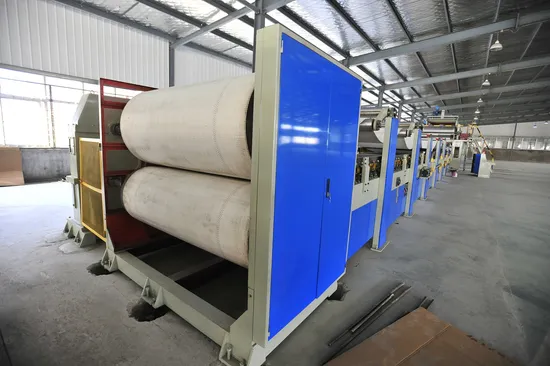

§ Detailed Pictures §

---
