Electric Livestock Feed Forage Wheat Straw Chaff Cutter Animal Feed Straw Grinder Cutter Machine

Product Description

Electric Livestock Feed Forage Wheat Straw Chaff Cutter Animal Feed Straw Grinder Cutter Machine

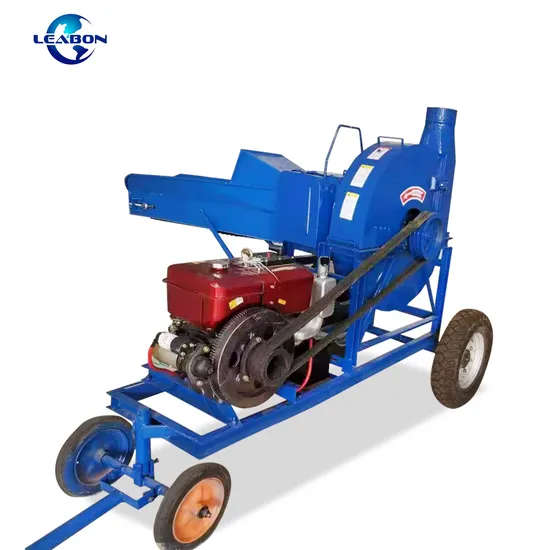

Introduction of grass straw cutter
The machine is powered by a motor. The power is transmitted to the main shaft, and the gear at the other end of the main shaft transmits the speed-regulated power to the grazed grass through a gear box, a universal joint, etc. When the material to be processed enters between the upper and lower pressure grasshoppers, it is pressed. Holding and feeding at a certain speed into the cutting mechanism, after the high-speed rotary cutter is chopped and thrown out of the machine through the grass.
Parameter of grass straw cutter

Model	Power(KW)	Weight	Dimension(mm)	Capacity(T/H)
LB9Z-3.0	5.5	180	1250*1150*1670	2.5-3.5
LB9Z-5.0	5.5	350	2690*1210*2390	4.5-5.5
LB9Z-8.0	7.5	480	3110*1500*2860	6-8
LB9Z-10.0	15	1000	3510*1800*4210	8-10
LB9Z-12.0	18.5	1285	3810*1900*4230	12-18
LB9Z-15.0	22	1500	4100*1950*4350	15-20
LB9Z-20.0	30	2000	4350*2050*4550	20-30
LB9Z-30.0	45	3000	4850*2350*4550	25-38

Advantage of grass straw cutter 1. Grass feeding mechanism, feeding grass roller device, automatic feeding, non-wrapped grass in the conveyor chain, smooth feeding, high production efficiency.
2. Speed-adjusting gear box structure, easy and quick adjustment of grass length, reliable sealing of box and good lubrication.
3. The transmission part is equipped with an externally adjusted roller bearing and a universal joint. It has a compact structure, flexible operation, and easy disassembly and assembly.
4. The feeding and conveying mechanism is controlled by a switch, making it easy to switch and move freely.
5. The blade is made of wear-resistant steel, refined by a special process, wear-resistant; high-strength bolt connection, stable and reliable performance.
We can provide electric and diesel typeFinally products of straw grass cutter
