US$18,900.00-36,000.00
|
1 Set
(MOQ)
|
Basic Info.
Making Method of Parison
Stretch Blow
Computerized
Computerized
Certification
CE, ISO9001:2008, QS
Product Name
Bottle Blowing Machine
Bottle Shape
Round/Square
Working Type
Stretch Blow
Controlled by
Siemens PLC
Automatic
Semi/Fully/Automatic
Transport Package
Wooden Package
Production Capacity
30sets/Month
Product Description

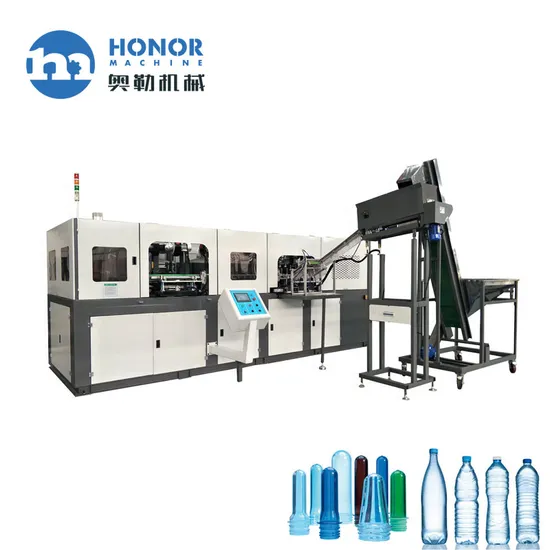

4000BPH 6000BPH 8000BPH automatic 330ml 500ml plastic PET bottle blowing molding moulding machine1. Excellent Mechanical Strength, impact-resisting, and non-craking.
2. Bottle mouth and thread are of precise measurement.
3. Plastic Medicine Bottle's safe thread can be molding directly.
4. The size and weight of the product can calculate and design clearly and meet the requirement of the design without any deviation.
5. The surface of the bottle mouth, neck and the body is good luster and smoothness, the standard of bottle body is unity.
6. The joint seam on the bottle body is smooth, no scrap rubber.
| Model | HM-A2 | HM-A4 | HM-A6 | HM-A8 |
| Capacity(500ml/bottle/h) | 1800-2500 | 3200-4000 | 5500-6000 | 7600-8000 |
| Max volume(L) | 2L | 2L | 2L | 1.5L |
| Max neck diameter(mm) | 45mm | 45mm | 45mm | 45mm |
| Max bottle diameter(mm) | 100 | 100 | 90 | 76 |
| Cavity | 2 | 4 | 6 | 8 |
| Total power(kw) | 25 | 45 | 60 | 86 |
| Operation power(kw) | 12 | 25 | 45 | 65 |
| Working pressure(Mpa) | 1.0Mpa | 1.0Mpa | 1.0Mpa | 1.0Mpa |
| Low pressure consuming(L/min) | 1000 | 1600 | 1600 | 1800 |
| Blowing pressure(Mpa) | ≤3.0Mpa | ≤3.0Mpa | ≤3.5Mpa | ≤3.5Mpa |
| High pressure consuming(L/min) | 1200 | 2400 | 3600 | 4200 |
| Machine size(mm) | 1900*1350*2000 | 2200*1800*2000 | 4100*2000*2000 | 6900*2100*2000 |
| Machine weight(kg) | 220 | 250 | 320 | 390 |
Honor Machine provides the wide range of liquid filling capabilities and industry experience while delivering the lower cost of ownership for our customers.
We are not only a filling equipment manufacturer, but also design and build factories, equipment layout, circuit layout and equipment operation schemes. Our equipment is designed carefully, easy to use and easy to manage. Whether you need a machine or a complete filling and packaging system, we have rich experience to ensure the successful completion of your project.
Since 2008, Honor Machine has been one of the leading suppliers of packaging technology. Located in the beautiful city of Zhangjiagang, Jiangsu Province, a new port city famous for professional industrial city. We are committed to:
|
|
|
>>
