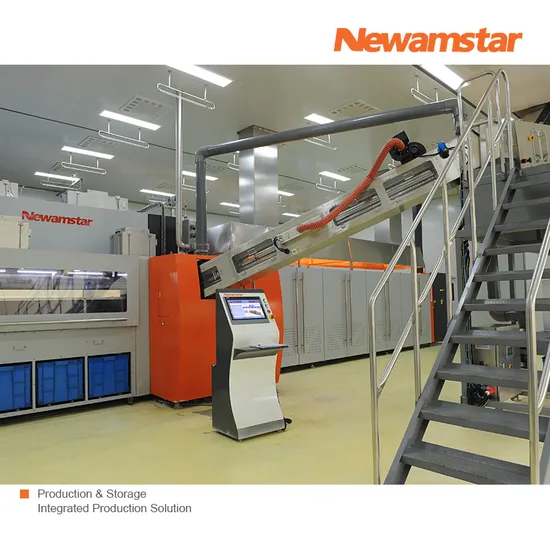

Pet Bottle Blow Molding Machine Line

Product Description

Bottle blow molding machine
RBM series rotary blow molding machines apply to the production of PET bottles for water, carbonated soft drinks, hot filling, etc.
Main features
1. It adopts high definition TFT touch screen display, which can easily make multi-language menu switch and express operation instruction though multi-layer menu with pictures and text mode. Production speed, shift production, technical parameters and set interface can be displayed in the different layer menu, which has a friendly man-machine interface while it is very easy and convenient for operation.
2. Special t has very high productivity. Designed two-time blowing system can monitor in time the pressure variety curve in molding process of each cavity, providing parameters in time and exactly for technique adjustment, which is very convenient for operator to adjust technique parameters and has stable bottle molding quality.
3. It adopts the gripper transfer technology accurately controlled by cam mechanism. It is very stable and reliable while transferring preforms and bottle at high speed. Preform picking & sending and bottle picking & sending match mould opening and closing to ensure high-efficiency and exact sports process. Preform picking & sending and bottle picking & ranking are all finished by grippers to avoid middle pollution.
4. The cam mechanism accurately control the opening and closing of mould base with special mould locking and pressurizing system and simple and firm mould base structure. The blowing parameters for each cavity can be controlled independently. Good malfunction diagnosis function and special blowing structure ensure the sealing reliability under each pressure, and the blowing pressure can be adjusted. The stretch rod exactly control preform's axial stretch; The first blowing and second blowing control preform's longitudinal stretch. It can get good bottle wall thickness by accurately adjusting the first and send blowing.
5. Break the normal procedure design to adopt the same-axis rotary bushing structure and adopt two deep groove ball bearings to fix the two ends, making the outer sleeve and core shaft be concentric and ensuring that the rotary sealing ring is not easy to be damaged. Simultaneously add one water-back way to make the leakage water back along the pipe and ensure no leakage for water distributor.
6. Heater adopts nine-section far infrared temperature control. Each group of lamps in pre-heating zone and adjusting zone can be respectively controlled and adjusted according to technique requirement. It equips timely temperature monitoring system to ensure stable and accurate technique and avoid too high temperature on outer wall of the preform. The heating system can save 10%-20%.
7. The air recycle system can be added by customers' request which can save 20-30% air to save energy and lower cost.
8. The technique parameters as heating temperature and blowing time can be set according to different preforms and bottles. While changing different bottles, user only needs to choose the pre-set parameters.
9. There are timely monitoring and controlling function and hints and help for malfunction alarm. The flexible and convenient parameter set can satisfy different technique requirement.
10. The mould is made of special aluminum alloy, with special oxidation treatment on surface to prolong the use life-span and lower the production cost.
11. The machine equips reliable safety door system and alarm device to protect operator at maximum limit.

Technical Description
Mold cavities	8, 10, 12, 14, 16, 20, 24, 30
Speed	12, 000-51, 000BPH (500ml)
Type of Bottles	PET Bottles of various shapes
Bottle Height	150-340(mm)
Bottle Diameter	φ 50-120(mm)
Bottle Neck:	28-38(mm)
Product	PET bottles for water, carbonated soft drinks, hot filling and edible oil, etc.

Main Products:

Beverage Processing System		System	Equipment	Design capacity
		Water Treatment System	Pre-filtration System\Membrane Separation System\Sterilization System	5-100 T/hr
		Processing System	Dissolving Unit\Extraction Unit\Fermentation Unit\Blending Constant Volume Unit	5-60 T/hr
			UHT System\CIP System\ Disinfectant System\Carbon Mixer
Packaging System	System		Equipment	Design capacity
	Blow Moulding System		0.25~15L	1200-81000 BPH
	Filling System		Water Filling\Aseptic Filling\Ultra-clean Filling\Hot Filling\CSD Filling	1200~81000 BPH
	Combibloc		Starbloc\(Big)Bottled Water Combibloc\Aseptic Combibloc\Ultra-clean Combibloc\CSD Combibloc\ Hot-fill Combibloc\ Non-beverage Combibloc	1200-81000 BPH
	Conveying System		Air Conveyor\ Bottle Unscrambler\ Bottle tilting chain\ Showering Cooling Tunnel\ Bottle Warmer\ Bottle(Case, Pallet) Conveyor	5000~81000 BPH
External Packing System		System	Equipment	Design capacity
		Film Wrapper	Transparent\Colorful Film	60~120 box(case)/min
		Carton Packer	Robot Packer\ Wrap around packer	60~120 box(case)/min
		Bottle(Can) Palletizer(Depalletizer)	PET Bottle\Can\Glass Bottle	5000-72000 BPH
		Case Palletizer(Depalletizer)	Carton\Plastic Crate	5000-81000 BPH
		Labeler	Hot Glue\Self-adhesive Sticker\ Cold Glue\Pre-applied Glue	6000-48000 BPH
Internal logistics system		System	Equipment	Remark
		Intelligent Warehouse	Rail Guided Vehicle\Automated Guided Vehicle\Stacker\ Automated Loading System
		Warehouse Control System	Racking System
		Warehouse Management System	WMS combined with Enterprise's system
Management Platform for Intelligent Factory		System	Equipment	Remark
		Central Electrical Control System for Whole Line	Operation Monitoring\Data Collection\Reports\Energy Management
		Remote	24 hours customer service line\Remote diagnosis to solve technical fault quickly\Professional support & technical training

---
