US$3.00-20.00
|
10 Pieces
(MOQ)
|
Basic Info.
Pressure
1.6MPa≤p<10.0MPa
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Outside Diameter of Body
314mm
Max.Filling Gas Weight
15kg
Design Wall Thickness
3.0mm
Outside Diameter of The Base
300mm
Outside Diameter of The Shroud
230mm
Transport Package
Packed by Pallets, Wrapped by PVC
Specification
CE/TPED/DOT/GB
Origin
Shanghai, China(Mainland)
Production Capacity
50000 Unit/Units Per Month
Product Description
LPG parameter table:
| Type | Outside diameter Of the body(mm) | Water Capacity(L) | Height(mm) | Max. Filling Gas Weight(kg) | Design wall Thickness(mm) | Outside diameter Of the base(mm) | Outside diameter Of the shroud(mm) | Working Pressure(MPa) | Test Pressure(MPa) |
| LPG-3kg-01 | 190 | 6 | 235 | 3 | 2.3 | 190 | - | 2.1 | 3.2 |
| LPG-5kg-01 | 200 | 12 | 430 | 5 | 2.3 | 200 | 162 |
| LPG-5kg-02 | 230 | 11 | 355 | 5 | 2.3 | 190 | - |
| LPG-6kg-01 | 302 | 13 | 295 | 6 | 2.3 | 302 | 302 |
| LPG-6kg-02 | 294 | 13 | 288 | 6 | 2.3 | 302±3 | 265±1 |
| LPG-10kg-01 | 320 | 23.5 | 526 | 10 | 2.9 | 240 | 190 |
| LPG-11kg-01 | 300 | 24 | 595 | 11 | 2.9 | 300 | 190 |
| LPG-12.5kg-01 | 294 | 26.5 | 582 | 12.5 | 2.9 | 300 | 220 |
| LPG-15kg-01 | 320 | 35.5 | 665 | 15 | 2.9 | 298 | 220 |
| LPG-15kg-02 | 314 | 35.5 | 680 | 15 | 3.0 | 300 | 230 |
| LPG-15kg-03 | 320 | 35.5 | 680 | 15 | 3.0 | 240 | 190 |
| LPG-20kg-01 | 320 | 47 | 833 | 20 | 3.0 | 240 | - |
| LPG-20kg-02 | 300 | 47.7 | 903 | 20 | 2.9 | 300 | 190 |
| LPG-48kg-01 | 407 | 113 | 1160 | 48 | 3.5 | 400 | 230 |

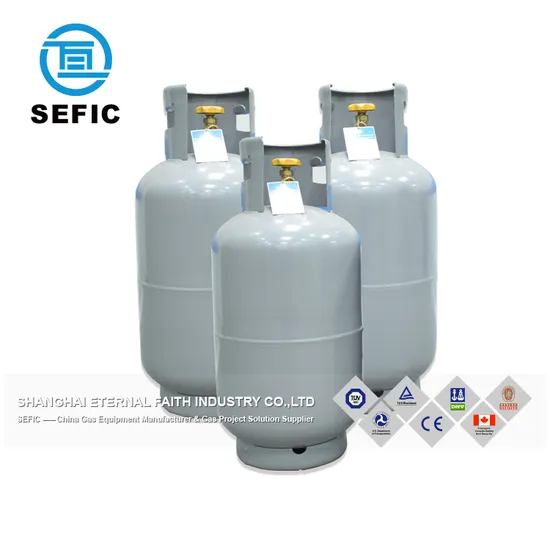

LPG Gas Cylinder Picture:
LPG Valve:
LPG Cylinder Production Lines:
Company Information:
Creative and Trustworthy Company: Located in Shanghai, SEFIC is one of professional suppliers of gas equipment such as gas cylinders, storage tanks and gas filling stations and affiliated equipment parts such as gas cylinder valves, tulip caps and steel pipes. We have many years' experience in gas industry and have received a good reputation in this field. Our products have been exported to many countries such as U. S. A. And European countries and enjoy popularity all over the world.
Quality and Security System:
We have implemented strict complete quality and security control system, which ensures that each product can meet the quality and security requirement of our customers. We have been adopting the advanced science and technology to produce gas cylinders and affiliated equipment since our company is established. In addition, all of our products have been strictly inspected before shipment.
We Are Reliable Partners!
We are dedicated to realizing the largest profit for both our clients and ourselves. We have been making great effort to achieve this win-win project and sincerely hope we will have long-term partnership in the soon future!
All clients are welcome to our compy for visit!
Manager: David
ADD: NO. 6598., Hutai Road, Baoshan district Shanghai, China 201908
>>
