Carbon Steel Aluminum Sheet Fiber Laser Cutting Machine

Product Description

Carbon steel aluminum sheet fiber laser cutting machine
1.Product Description

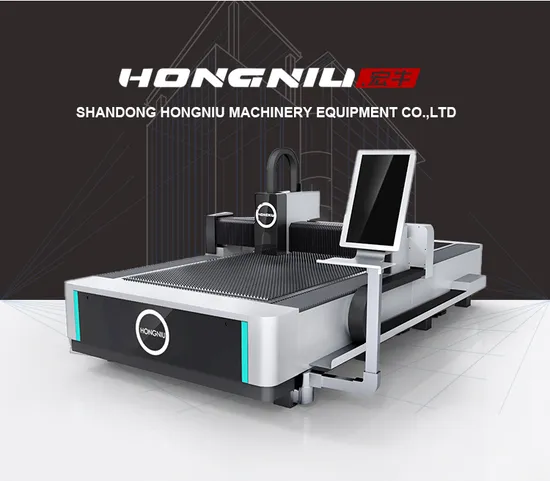

3015F is fast speed mild steel cnc fiber laser cutting machine with 3000*1500mm working area, which consist of machine tool,motion parts, electrical equipment control parts, and other assist parts.
2.Product Advantages
1.Stability and reliability of light path system and control system.
2.Higher cutting quality and efficiency,cutting speed is up to 60m/min with appearance and beautiful cutting edge.
3.France high performance reducer,Taiwan gear and rack;Japanese fuji or yaskawa servo motor and driver.
3.Machine Parts

Professionl fiber laser cutting head Raytool laser head, fiber cutting head with Swiss technology and a professional QBH fiber optic output interface for a highly sealed and precise focus calibration. Owing to the excellent performance of high-speed capacitive sensor, the cutting gap can be as short as 0.1mm, which not only improves the cutting performance, but also reduces the gas consumption
	Raycus Laser Source Raycus/Max/IPG, multiple choice Different brands, different laser power are available. The higher power, the thicker cutting thickness.
Servo motor Fuji/YASKAWA servo motor servo motor with fast dynamic response provides speed and performance stability. The maximum idle speed of the machine can reach up to 100 m/min
	Cypcut Control System can remotely control computers and machines, adjust parameters and solve problems. Efficiency- One PC can control several machines.
S&A Water Chiller With excellent quality and leading research retrength, S&A has become a leading enterprise in the China industrial refrigeration industry.
	PEK rail High carbon content, high compressive strength and high hardness.Low thermal sensitivity reduce the loss of equipment in using.

4.Technical Parameters

Model	3015F
Working area	1500mm*3000mm
Laser type	Fiber laser generator
Laser power	1000w 1500w 2000w
Transmission system	Gantry double-drive structure
Lubrication system	Full-automatic
Maximum speed	80m/min
Maximum accelerated speed	0.8G
Machine body	Tube welded Gantry milling De-stressing
Reposition accuracy	±0.02mm/1000mm
Graphic format supported	CAD. DXF (etc)
Working environment	Temp:0-40ºC,humidity:≤80%, No condensation
Total power	(Around) 16KW
Machine size	4800*2280*2100mm
Gross weight	2500kg
Position accuracy	±0.03mm/1000mm
Machine table bearing	750kg

5. Sample Show
7.Packing
1.Timely delivery. Each machine is arranged with precise assembly steps without any delay.
2.After-sales services and Guarantee. We offer 2 years warranty, during the period, any problem happen, we are responsible to solve. And if any part of the machine was broken, which happens rarely,
3.Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
8.After-sales service
Pre-sales service * In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products. * Every machine must be tested before delivery, all of them are absolutely qualified.
After-sales service * User manual and Installation video will be sent to you together with machine. * Provide online technical support, and, the engineer can be sent to your local to install or adjust if necessary. * 24 months guarantee of the whole machine. * 12 months warranty for Main parts(excluding the consumables and belongs to the user irregularities operating), shall be changed free of charge if there is any quality problem during the warranty period. * Provide the consumable parts at an agency price when you need replacement in future.
9.Company information (basic information certificate exhibition, etc.)
Shandong Hongniu laser Equipment Co.,Ltd is specialized in RD, manufacturing and marketing of large scale CNC cutting machines and welding equipment. Our main products include fiber laser cutting machine,CNC plasma cutting machine, gantry plasma cutting machine, CNC punching machine, laser cutting machine, 3D laser cutting machine, 3D welding machine and so on. As a domestic specialized CNC researching company. we dedicated to providing excellent after-sale service, technology-leading and reliable products as well as integrated technology solutions for our business parther.Customers satisfaction is always the exclusive purpose of our service.

---
