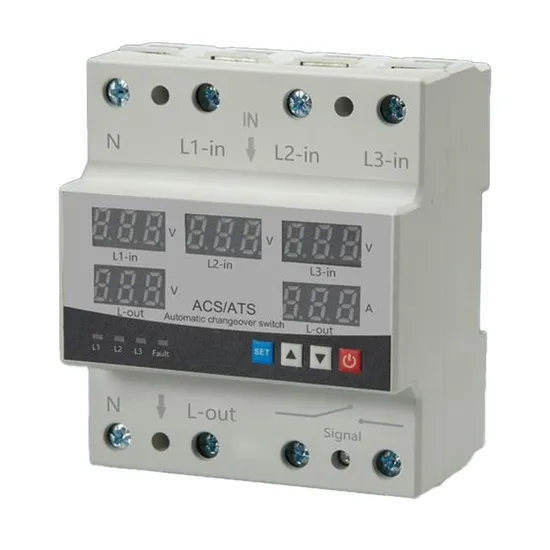

Voltage Protector N L1 L2 L3 AC230-300V 1-600s Acs/ATS Automatic Changeover Switch

Product Description

Product Description
Front-face Panel:
Technical Data

Supply terminals	N,L1,L2,L3
Rated supply voltage	AC 3*220V(N-L1/L2/L3)
Rated frequency	40/50160/70Hz
Umax setting range	AC230-300V
Umin setting range	AC140-210V
Auto-reclosing delay(Ton)	1-600s
Return delay to priority phase	1-600s
Switch delay to reserve phases	<0.2s
Voltage hysteresis	5v
Overvoltage trip delay	0.1s;2350V:0.02s
Undervoltage trip delay	0.1s;2350V:0.02s
Voltage accuracy	<1%
Max.operating phase voltage	350v
Rated operating current	63A/80A/100A
Max.operating current	80A/90A/100A
Pollution degree	3
Electrical life	10^5
Mechanical life	10^6
Altitude	≤2000m
Ambient temperature	-25ºC~+50ºC
Permissable relative humidity	≤50% at 40 ºC (without condensation)
Storage temperature	-25ºC~+55ºC
Conductor size	0.5mm2~1mm2

Setup Menu: Outline Overall and Installation Dimensions (mm): Product Catalog
Company Profile







FAQ

Q1. What's the payment term? A. We accept TT,30% deposit and 70% balance before shipping. Q2. How's the delivery time ? A. We depend on different products and different quantities. Generally, it takes about 3-15 days. If the quantity is very large, we need to negotiate. Q3. Tell me the standard of package? A. Normally are cartons, but also we can pack it according to your requirement. Q4.Could you offer Form A or C/O ? A. It's totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for thiscertificate. Q5.Would you accept to use our logo ? A.If you have good quantity,it absolute no problem to do OEM.

---
