Neopl-1800 Series Fiber Grinding Machine Fiber Polisher Grinder Optical Grinding Equipment Automatic Bare Fiber Polishing Machine Fiber Optic Polishing Machine

Product Description

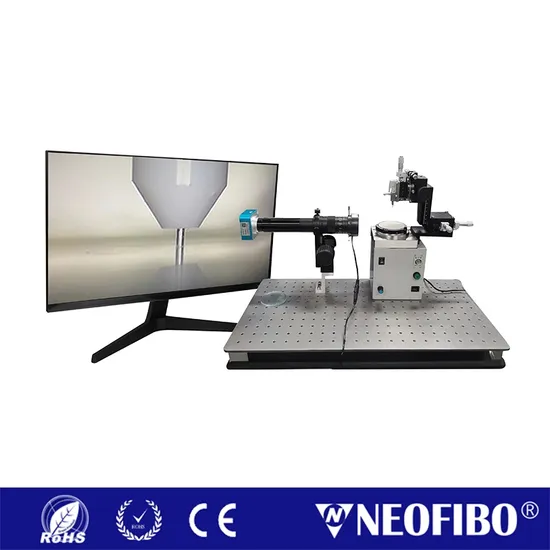

NEOFIBO NEOPL-1800series Automatic Bare Fiber Polishing Machine Fiber Optic Polishing Machine
Products Description

Description: NEOPL-1800 Polishing Machine is specially designed for bare optical fiber polishing, to polish the fiber into PC end face, APC end face and tapered end face. Equipped with indexing circle and 3D adjustment holder, the polishing angle of optical fiber is adjustable from 0-60 degrees. External micrometer to adjust the fiber extension length and polishing pressure. Quick removal bare fiber adapter interface, holding different diameters of optical fiber. Suitable for polishing communication accessories, special optical fibers, medical fibers and energy fibers.
Key Features:
* Designed specifically for bare fiber polishing, different diameter fibers are equipped with different ferrule adapters.
* Support PC end face and APC end face polishing.
* Polishing APC bare fiber end face, tilt angle 0 to 60 degrees adjustable.
* HD magnifier, real-time monitoring of polishing status and appearance.
* Suitable for fiber optic application R&D units and university laboratories.
* Customized polishing fixture for different fiber optic products.
* Common applications include fiber arrays, optical waveguide devices, optical chips and collimator assemblies, etc.
* Optional tapered fiber polishing fixture for polishing tapered end faces of bare fibers
Contact Us >>>Go
Main parameters:

Machine Size	L 240(mm) × W 240(mm) × H 260(mm)
O.D. of Rotation Plate	127 mm5 inch
Time Settings	99 min 99 sec (Max)
Speed for Rotation Plate	90 rpm
Height of Plate Jumpiness	<10 um
Pressure Configuration	21 ~ 36 N/cm2
Work Temperature	10 ~ 40 Celsius degrees
Relative Humidity	15%~85%
Noice	unloading Less 50 dB
Libration	Working Status 0.25g 5~100Hz 10min
Stopping Status	0.50g 5~100Hz 10min
Power Input	220230 VAC 50Hz/60Hz
Electric Power	40W/60W
Net Weight	28kg

Standard configuration

Product	Quantity	Unit
Polishing machine NEOPL-1800A	1	set
Rubber pad 70/75/80/85 degree	4	pieces
Glass pad NGP-70MM-00	1	piece
Bare fiber holder BFH-2.50	1	pc
Video Magnifier VIS-100X	1	set

To know more products, please check quick links below connected to our homepage. Feel free to contact us.

Fiber Polishing Machine	Fiber Polishing Fixture	Fiber Production Line Equipment	PM Fiber Alignment Systerm	Fiber Polishing Consumable
Fiber Cleaning Solution	Optical Power Meter	Fiber Tool	Fiber Optic Connectors and Apater	Indoor Cables

Helpful Links
For instant communication, please click hereFor our catalogs, please click hereFor our home page, please click here
If you can't find a fixture suitable for you, please contact the supplier, we have professional staff to provide you with services. Polishing Effect
About Us
Shenzhen Neofibo Technology Limited We have 17+ years experience.We could provide optic fiber production line and service for you. you can count on us to offer you the best solution.Neofibo is focusing on the field of fiber optic polishing solutions.We specialize in manufacturing fiber optic polishing machine, design various optical fiber connectors polishing fixtures, provide completed polishing process and materials for all kinds of fiber optic connectors.Neofibo can provide not only products, but also technical services and R & D support.
FAQ
1.About the fixture of NEOPL-2000A, does it works perfect with the Seikoh Giken 550 polishing machine ? Yes, we confirm that it works perfect with the Seikoh Giken 550.
2.Polisher can't work?
(1)Confirm power, and examine speed adjusting knob.
(2)Whether the timer stop at ZERO.
(3)Whether fuse is OK or not.
3.Polished ferrules could not reach required shape or quality.
(1)Film is used over 40 times.
(2)Water doesn't be used.
(3)Films are not cleaned completely.
(4)Ferrules and jig are not fixed correctly.
(5)The distance adjustment between screw top and Plane A is not correct.
4.Bad quality for the polished surface.
(1)Film is used over 40 times.
(2)Polishing liquid is not used.
(3)Film is dirty.
(4)Ferrules are not cleaned completely.
(5)Scraped by film when pulling out the ferrules.
5.How can we guarantee quality?
(1)Always a pre-production sample before mass production;
(2)Always final Inspection before shipment;
6.what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
Please contact us if you have any questions or needs.

---
