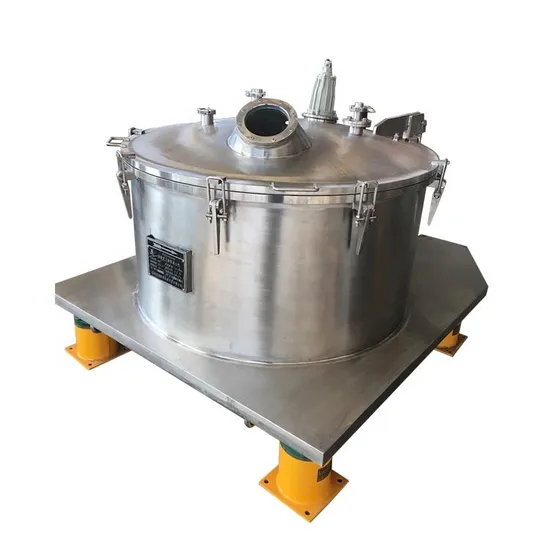

PS Flat Filter Centrifuge Separator with High Capacity

Product Description

Flat filter Centrifuge:
Product features:
Reasonable structure design, simple geometric shapes which can eliminate the health corners effectively, structural parts smooth transition, the surface polished. External components, fasteners and the parts contacting material are made of stainless steel, The shell is clamshell type, which can thoroughly clean the interlayer between shell and bowl.
Base is the flat structure, reducing the machine center of gravity, small size, the shell and base is overall welded form, bearing's strength is high.
Configuration of liquid rubber damper to reduce vibration,which can realize installation without basing.
Shell is clamshell model with a large or small, cover with feed tube, washing pipe, sight mirror, light mirror and spray systems, it is also equipped with nitrogen protective devices to isolate the machine chamber and outside air .
Direct type-specific motor, belt drive eliminates the potential dust, inverter start smoothly, dynamic braking, the whole machine is good sealing performance, anti-explosion, can be applied to toxic and flammable, explosive situation.
Working Principle:
PS-NC Flat Direct filtration centrifuge 's bowl is based parts, direct-coupled motor drives the bowl rotate at high speed to form a centrifugal force field. Suspension liquid flow into the bowl from the top of the feeding tube, under the action of centrifugal force, threw to the drum wall, then into the interlayer between shell and bowl through the filter holes in the bowl, next, threw into the liquid collection chamber at the bottom of machine, discharged by the drain pipe, and solid phase retained in the bowl, For washing, the washing water through the washing tube to wash, solid phase is discharged from the top by hand.

parameter
type item		PS300-NC	PS450-NC	PS600-NC	PS800-NC	PS1000-NC	PS1250-NC
bowl	wall thickness in mm	4	4	5	6	8	12
	inner diameter in mm	300	450	600	800	1000	1250
	height in mm	180	300	315	400	420	520
	filter area (m2)	0.15	0.24	0.66	1.00	1.30	1.65
	opening of liquid baffle (mm)	200	320	420	560	750	870
	working volume(L)	7.5	20	45	100	140	280
	max charge(kg)	10	30	100	135	200	400
	speed(r/min)	2500	2000	1500	750/1500	1200	970
	max separation factors	1340	1000	750	1000	800	630
motor	type	YBLD	YBLD	YBLD	YBLD	YBLD	Ybdl-4
	power(kw)	1.8	2.6	3.0	5/7.5	11	15
	speed(r/min)	0~2840	0~2884	0~1500	750/1500	1460	1460
size(mm)		650×650×620	800×800×760	1100×1100×1000	1260×1260×1180	1600×1600×1100	2500×2000×1500
weight(kg)		200	380	610	1300	2300	3500

FAQ
Q1: Where can I get product & price information?
A1: Send us inquiry or email directly, then we will contact you.
Q2: How can I make sure your machinery is suitable for me?
A2: Please tell all the separation information you know, such as your raw liquid,
two-phase or three-phase separation, solid content in liquid, solid size, the purpose, etc. After analyzing your information, we will to choose a suitable model for you, and send the details and videos to you.
Q3: What should I do if I want to see the separation effect?
A3: If you can come to our factory with the raw liquid, we will provide test service. Or you deliver the raw liquid to us, and we will do a test, and supply you the testing videos.
Q4: How to enjoy the OEM services?
A4: As the manufacturer of the machine, we will try our best to satisfy you if you have any specific requirement, such as the cover device, drum size, motor voltage, etc.

---
