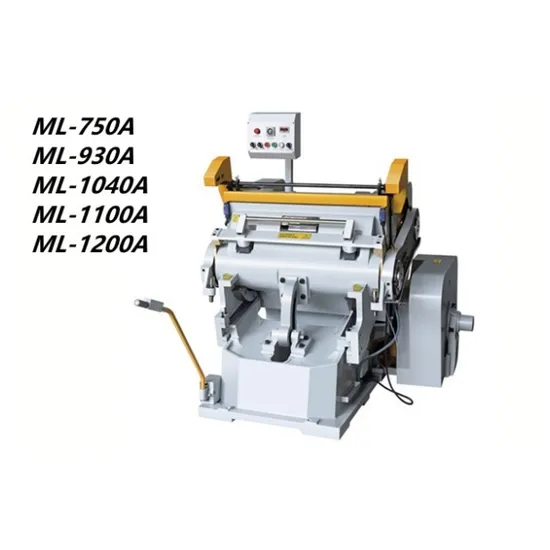

Ml-750A/930A/1040A/1100A/1200A High Quality Die Cutter, Free Warranty, Jigsaw Puzzle Maker, Aoer Machinery

Product Description

The Tiger manual die cutting machine is used for die cutting and creasing various types of paper, paperboard, corrugated board, label, and plastic sheets, with functions of single pressing and cutting, continuous pressing and cutting with or without an adjustable delay during the continuation. The operation system is well-designed and easy to use, and the clamp for pressing can be opened at a wide angle. It is equipped with a central lubrication system and automatic oil pumps. The body of the machine is made of high strength cast iron. It is also equipped with a large flywheel, which ensures high pressure for cutting.
Suitable materials:
Paper and paperboard
Corrugated board
Sticky label (kiss cut)
Plastic sheets, eg. PVC, PP sheets (need to add the optional heating plate)
Specification

Model	Inner Chase Size(mm)	Speed (strokes/min)	Max.Rule Length(m)	Motor Power(kw)	Weight(t)	Overall Dimensions(mm)
ML-750A	750*520	26±2	<22	2.2kw	2	1450×1500×1500
ML-930A	930*670	23±2	<38	4kw	3.5	1550×2100×1800
ML-1040A	1040*720	23±2	<40	4kw	4	1650×2100×1850
ML-1100A	1100*800	20±2	<45	5.5kw	4.5	1800×2200×1900
ML-1200A	1200*820	20±2	<45	5.5kw	5	1900×2200×1900
ML-1300A	1300*920	16±2	<48	5.5kw	6.5	2100×2350×2000
ML-1400A	1400*1000	15±2	<52	5.5kw	7.1	2200×2450×2000
ML-1500A	1500*1050	14±2	<55	7.5kw	7.8	2200×2550×2000

Features> The heavy-duty machine body is made of cast iron (resin sand casting), which ensures its high strength and durability.> The large flywheel and helical gears allow the machine to run smoothly and at high pressure.
> The advanced automatic central lubrication system ensures full lubrication for every necessary transmission part.
A dependable safety system: the machine is outfitted with a hand brake and several other brakes with limit switches.
Safety guard (optional) Infrared protection sensor
> The eccentric bushing and bearing shell which connect to the main shaft are made of copper
Copper eccentric bushing Copper bearing shell

> The main transmission parts are heat-treated and therefore more durable. We use NSK or SKF bearings for the main shaft, which are famous for their quality.

> The liner plate is made of high-quality stainless steel.> The electrical system with Schneider contactor, which is safe and reliable.
Optional Parts ListHeating plate
(for plastic sheets)
Second Generation Safety guardInverter (for adjusting the cutting speed)
Packing and Delivery Options
Wooden pallet Vacuum bag package Seaworthy wooden case

Model	Net weight(T)	Gross weight(T)	Packing Dimensions(mm)
ML-750A	2	2.2	1550*1600*1600
ML-930A	3.5	3.7	2050*1600*1700
ML-1040A	4	4.2	2100*1750*1750
ML-1100A	4.5	4.7	2150*1950*1750
ML-1200A	5	5.2	2150*2000*1800

Main Configuration List

Name	Origin	Quantity
Motor	Lishi, China	1 set
Automatic oil pump	Boyci, China	1 set
AC contactor	Schneider, France	Several pcs
Breaker	LS, China	Several pcs
Limit switch	Schneider, France	Several pcs
Infrared sensor	Omron, Japan	1 set

Company ProfileFounded in 2001, AOER Printing and Packaging Machinery Group (AOER) is a leading printing machinery company specializing in research and manufacturing of finished die cutting and hot stamping equipment, which is a "national high-tech enterprise" as named by the Chinese government. We provide manual machines for sheets in a width range from 750 to 3000 mm. The automatic machines we provide cover the range from 800 to 2200 mm. AOER provides more than 120 machine models for choice.
AOER owns more than 40 patents, including software copyrights, new utility patents, and invention patents, and has passed the ISO 9001 international quality management system certification. It has been awarded with the titles of "Quality Brand", "the drafting unit of the national standard of the printing machinery industry" from the government, and other honors.
We are also a qualified supplier for more than 500 great enterprises, including STARLITE Group, MYC Group, YUTO Group, HUNG HING Group, and BYD Group.
AOER has actively practiced the company value of "authentic, responsible, focused, innovative, grateful, and altruistic" to bring happiness to the employees and offer customers cost-effective products and services. We will continue striving to become a national first-class die cutting and hot stamping equipment company and meet customers' needs in all aspects.FAQQ: What kind of materials that the model can die cut?
A: Paper and paperboards, corrugated boards. With an optional heating plate it can also die cut plastic sheets, eg. PVC, PP sheets.
Q: Can the machine do embossing?
A: Yes. It requires for embossing stampers (also known as cliché). The TYMA series is perfect for embossing as it can apply a large pressure to make the effect.
Q: Does the machine have relay function?
A: Yes, you can control the machine to have delays before (for putting the material in the machine) and during the stamping (to get a better stamping result).
Q: How long will be the delivery time?
A: It takes around 15 to 20 days to build a manual machine once the order is confirmed.
Q: Do you provide a warranty?
A: We provide an one-year free warranty and a lifetime after-sale services. We also provide technical support after sales at low cost.
Q: Do you do international shipping or do we need to ship by ourselves?
A: Yes, we can ship to the closest port around you or you can find a forward agent to contact us.
Q: How do you ensure the quality?
A: We do test runnings a day before the shipping. Our products have all passed the quality assessments, our products also have been proved by the market. We also provide a 1 year free warranty.
Q: Do you do test running before you send the machine?
A: Yes, we will also send a test running video to you before we ship the machine.
Q: What's the payment term?
A: T/T 30% in advance, the balance shall be paid before delivery.
Q: How long have you been in the field?
A: Our factory was founded since 2001.
Q: Can we visit your factory?
A: It will be our honor. Welcome!

---
