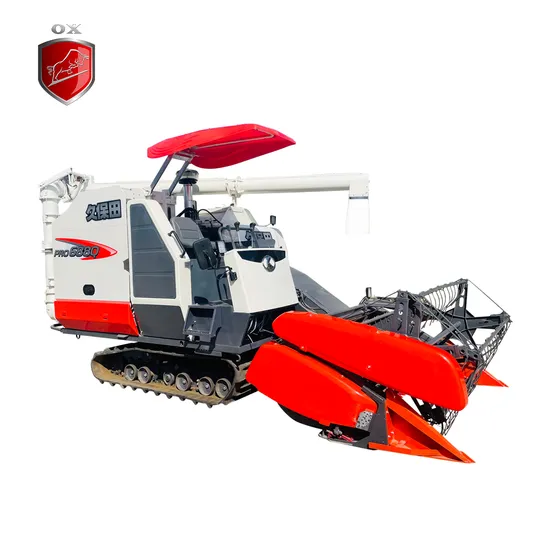

Combine Harvester of Yanmar Type for Harvest Paddy with Full-Feeding Harvesting

Product Description

Ref. No.	Item			Unit	specifications
1	Model			/	4LZ-4.5
2	Structure type			/	Self-propelled crawler type,full feeding ,
3	Supporting engine	Manufacturer		/	CHANGCHAI GROUP CO.,	ZHEJIANG XINCHAI GROUP CO.,
		Brand model		/	4G33TC	A4K41ZT
		Structure type		/	4-cylinder in-line, water-cooling ,direct injection,supercharged
		Engine net power		kw	73	73
		rated speed		r/min	2400
4	dimension(length×width×height)	Field operation		mm	5230X2352X2980
5	Combine operation mass			kg	3090
6	Combine header width			mm	2060
7	Feeding capacity			t/h	16.2
8	Minimum ground clearance			mm	300
9	Theory speed			km/h	0-7.4
10	Work hours productivity			h/h	0.2~0.5
11	Fuel consumption per unit area			kg/h	18.5~40
12	Cutting knife type			/	Normalized
13	Combine header auger type			/	Telescopic horizontal conveying auger
14	Reel	Type		/	Eccentric tooth type
		Diameter		mm	900
		Reel plate quantity		pc	5
15	Threshing cylinder	Quantity		pc	1
		Type	Main cylinder	/	Axial flow spike-tooth type
			Vice cylinder	/	/
		Size(diameter×length)	Main cylinder	mm	650X2005
			Vice cylinder	mm	/
16	Concave sieve type			/	Grid type
17	Fan	Type		/	Centrifugal Type
		Diameter		mm	375/175
		Quantity		pc	2
18	crawler	Specification( pitch× number×width)		/	90mm×51×400mm
		Gage		mm	1118
19	Gear box type			/	Special gearbox used for infinitely variable speed
20	Brake type			/	Built-in wet friction plate type
21	Straw chopper type				Rotary plug-in blades
22	Grain receiving method			/	Collecting box or packed in the bag manually.
23	Rethresher type			/	Auger spike-tooth type
24	Turning diamter	turn left		mm	2000
		turn right			1950

FAQ
Q1:Why choose DANYANG TIANDA?
A:We have 15 years' experience in agriculture machinery manufacturing and exporting, we have successfully developed many kinds of product.
Q2:May I purchase one sample or place mix order?
A:Sure,one is accepted,and you can also mix different models as you wish.But the freight of one sample may be a little high.One 40HQ can be loaded 3 units of harvesters.we suggest you to buy 3 units for save the freight cost.
Q3:QAre you interested in dealership with local company?
A:Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell our equipment in local market and supply better ser- vice to end users.
Q4:Where is your company located in?
A:Our company is located in Danyang City, Jiangsu Province, Welcome to visit our company.
Q5:How long is your delivery time?
A:7-15 days

---
