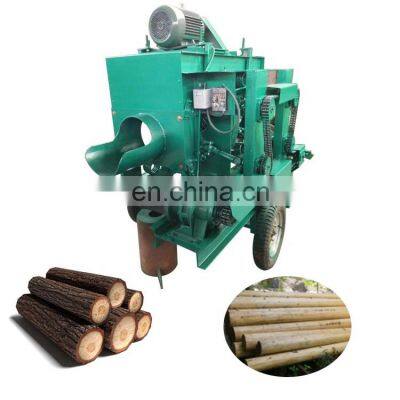

Introduction of vertical wood peeling knives machine
Slot wood debarker machine can put a pile of trees at a time, the output is relatively large, the working principle is that the spiral roller has a thorn, and the bark takes off the bark by the friction between the spiral roller and the tree.
The vertical machine is semi-automatic. It is necessary to manually put the trees into the feeding port and not to put the trees too thick.
Technical Parameters of vertical machine
|
Model
| TZ-6
| TZ-9
| TZ-12
|
Roll number (pcs)
| 1
| 2
| 1
| 2
| 1
| 2
|
Power(kw)
| 7.5*2
| 7.5*2
| 7.5*2
| 7.5*2
| 7.5*2
| 7.5*2
|
Rotate speed (r/min)
| 160
| 160
| 160
|
capacity(t/h)
| 5-10
| 7-15
| 10-15
| 15-25
| 15-25
| 25-30
|
Dimension (m)
| 6.3*1.31*1.55
| 6.3*1.31*1.55
| 9*1.5*1.7
| 9*1.5*1.7
| 12.6*1.6*1.7
| 12.6*1.6*1.7
|
Weight(t)
| 1.4
| 2.3
| 2.5
| 3.5
| 4
| 5.5
|
Technical Parameters of Slot wood debarker machine
|
Model
| Power(kw)
| capacity(t/h)
|
TZ-A
| 11
| 3-5t/h
|
TZ-B
| 15
| 5-8t/h
|
Main Features
1. High efficiency , low power consumption and save labour force
2. Operated easily, high productivity, little injury for the wood
3. Peeling studs are high, high productivity, small wooden damage. The new ring ring peeler inspection-free.
4. Use four-side edge tool, easy to use, low cost.
Detailed Images
Machine Parts
Mainly consists of feeding mechanism, the institution the knife dish, transmission system, chassis and
other parts.
Inside of the machine, there are small toothed knives on the sticks, which can be peeled the skin of tree by rotating back and forth and friction between the trees.
Machine Parts
The inside of machine, the spiral knives can turn back and forth to peel the trees.
Packing & Delivery
Our Service
1. MOQ (Minimum Order Quantity)
One set is welcome, and mix products for order are welcome.
2. Delivery Time
Depending on your quantity, for goods we have in stock. Delivery takes few days to comply with your request to replace the plug or other configurations. For regular order, by ocean shipping takes 20-40 days. For small machines, express delivery for 3-8 days.
3. Deviation
There might be sightly difference in color, because of the computer monitor settings .
With the difference in the measurement method, please allow 1-3cm in size deviation.
4. Package
Standard export wooden case or other packages depending on products packaging weight is subject to the actual pack.
5. Service
Welcome your compliments and suggestions. Any inquiries or complaints will be respond within 24 hours.
