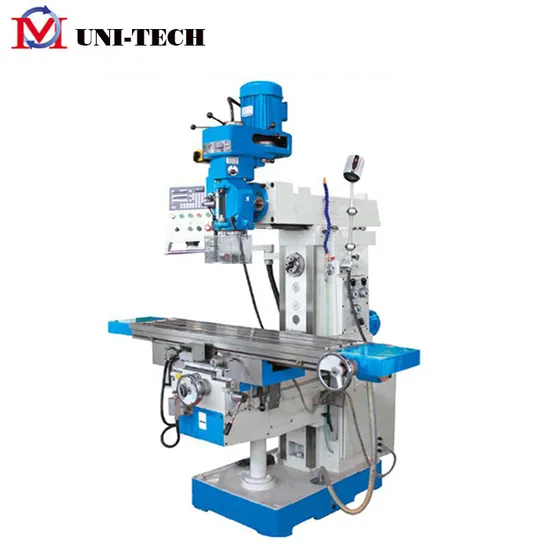

| Specifications | Unit | XL6330 | XL6330A | XL6330B | XL6330C | |||
| Table size | mm | 1270*300 | 1370*300 | 1270*300 | 1370*300 | |||
| Table travel (X/Y/Z) | mm | 720/300/400 | 820/300/400 | 900/380/400 | 1000/380/400 | |||
| Rapid speed of table (X/Y/Z) | mm/min | 1335/1335/1000 | ||||||
| Spindle taper | 5HP: ISO40 | |||||||
| Horizontal : IS040 | ||||||||
| Table feed (X/Y/Z) | mm/min | XY:30-830 Z:23-625 | ||||||
| Distance between horizontal nose and table surface | mm | 75-475 | ||||||
| Distance between spindle axis and ram surface | mm | 200 | ||||||
| Spindle speed range | 65-4660 (16steps)(V) | |||||||
| 12 steps 35-1500(H) | ||||||||
| T-slots(No./width/pitch) | mm | 3/14/80 | ||||||
| Arm travel | mm | 450 | ||||||
| Main motor power | --- | 5HP | ||||||
| Horizontal : 3Kw | ||||||||
| Torque of X/Y/Z axis AC servo motor | N.m | 10 | ||||||
| Overall size | mm | 1720×1680 ×2350 | 1820×1680 ×2350 | 1720×1680 ×2350 | 1820×1680 ×2350 | |||
| Net weight | kg | 1680 | 1730 | 1730 | 1780 | |||
| NAME | SPEC | QTY |
| Hex wrench | 5 | 1 |
| Hex wrench | 6 | 1 |
| Hex wrench | 10 | 1 |
| Fork wrench | 17*19 | 1 |
| Fork wrench | 22*24 | 1 |
| Fork wrench | 32*36 | 1 |
| Elevating crank | 1 | |
| Milling arbor | 7:24 ISO40 Ø27 | 1 |
| Draw bar | 1 | |
| nut | M16 | 1 |
| washer | 16 | 2 |
| Operation manual | 1 |
| Name |
| Universal dividing head 100 |
| Rotary table 250 |
| Collect holder and collets |
| (ISO40 milling chuck 15pcs) |
| CE Schneider electric |
| Aluminum hangarm |
| Spindle cover |
| Worktable cover |
| LED work lamp |
| Bakelite handwheel |
| Clamping kit 58pcs |
| Machine vise QB136 |
