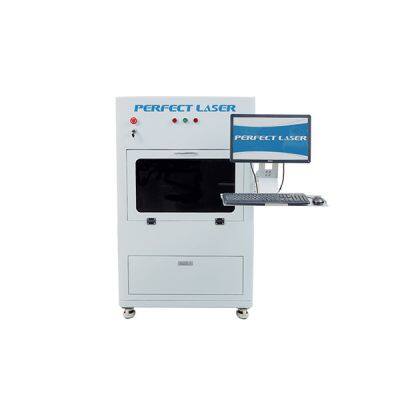

450x450x150mm k9 Crystal cube ball keychain gift Trophy 2D 3D Crystal Laser Subsurface Engraver

Product Details

Product Description

Product Description
Features:
1. Fast engraving speed: the 3D laser photo crystal engraving machine uses 3d inner engraving technology to produce images inside of crystal, the engraving speed is up to 300,000 points/minute.
2. Big engraving range: the engraving area of the laser photo crystal engraving machine can reach 450mm×450mm×160mm, which can meet the needs of mass production.
3. Highly integrated: the 3D laser engraving machine price is equipped with an industrial computer. There is also a foldable bracket for placing the monitor and keyboard. It is very convenient to move with universal wheels.
4. Imported components: the 3D laser engraver price adopts US imported observe windows which can protect us from injured, and Taiwan imported famous brand guide rail and screw for better quality.
5. The 2D to 3D image software of the 3D laser engraver price is standard and supports multiple image formats.
6. An optional 3D camera can be used to directly generate 3D images for on-site engraving after taking pictures, which is especially suitable for personalized gift customization in large shopping malls, resorts and other places.
Technical Data:

Product Name	3D Laser Photo Crystal Engraving Machine
Model	PE-DP-A1
Laser	ND: YAG Diode Pumped
Average Life LD	>20000 Hours
Max. Frequency	5000HZ
Laser Power	3W
Max Range Support Split	450 x 450 x 150mm
Focal Length	120mm
Max. Range Quick Non-split	90mm x 90mm
Spot Size	30μm
Speed	300000 points / min
Repeat Offsite	10~20μm
Power	<350W 220v/50Hz (110v/60Hz)
Net Weight	240 kgs
Cooling	Air cooling
File Format	BMP / JPG / DXF / OBJ / WRL / 3DS / STL / LSS / LAX / CAD
Package size	1060mm x1060mm x1460mm
Machine Size	800mm x 950mm x 1330mm
Warranty	2 years for Laser Source, 1 year for the whole 3D Laser Photo CrystalEngraving Machine

---
