Automatic Three Color Full Multifunction Cookie Making Machine Biscuit Making Machine

Product Description

Product Description

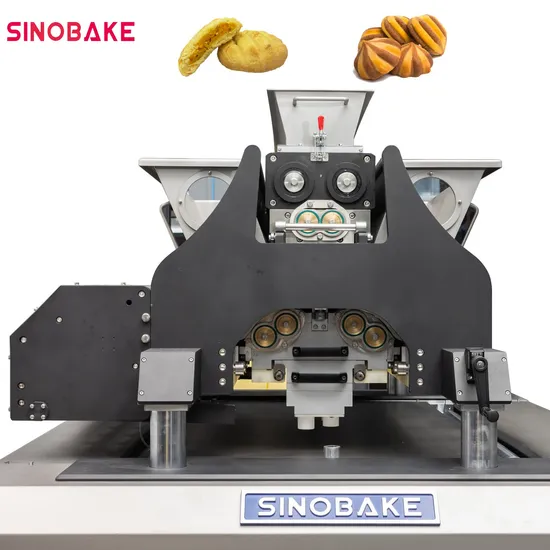

SINOBAKE Three color cookie machine
Parameters:

MODEL	WORKING WIDTH	Dimension(MM)	POWER(KW)	SPEED(TIMES/MIN)	NUMBERS OF MOLDS(A ROW)
CK3D600	800mm	2100*2200*1850	About 21	Farci:55; wire cut:120; depositing:60	10
CK3D1000	1000mm	2100*2400*1850	About 21	Farci:55; wire cut:120; depositing:60	16
CK3D1200	1200mm	2100*2600*1850	About 21	Farci:55; wire cut:120; depositing:60	20

Features:
1. This machine is mainly used for the billet forming of high fat cookies and cakes
2. Servo motors are used for the meshing and lifting of groove roller, feed pump and kneading components
Drive, independent motor control, frequency control
3. Feeding speed, extrusion speed and other parameters can be controlled by touch screen, which is easy to operate
4. The material pump assembly is fixed with worm gear and worm clamp, which can be quickly realized by rotating the hand wheel
Clamp or release the pump assembly for easy disassembly, cleaning and replacement
Material standard:
1. The side plate is made of Q235 carbon steel with a thickness of 20mm after processing, and the surface is plated with hard chrome
2. 7050 aluminum alloy is used for the side plate and connection plate of the nose, and the surface is treated with t-eflon
3. Imported food-grade POM materials for pump teeth; Pump body material with 7075 aluminum alloy, the surface of t-eflon treatment
4. The filling channel template is made of 7050 aluminum alloy, and the surface is treated with t-eflon.
Imported food grade POM materials for discharging mould;
5. Use SUS304 stainless steel for cover, support plate and hopper
6. The feeding trough roller straight after: Ø 120, 147, Ø material adopts SUS304 stainless steel
7. This machine USES 8 sets of servo, the servo motor USES french brand, and the reducer USES Taiwan brand precise planetary helical gear reducer
The press-roll reduction motor USES the brand of Taiwan yongkun
8. The control appliances mainly use well-known brands
9. NSK brand for bearing; THK brand for guide rail
10. Use food-grade silicone sealing ring

OUR COMPANY:

SINOBAKE Group Limited is a leading biscuit and cookie making machinery manufacturer based in China. The company designs, develops, and manufactures a wide range of high-quality baking equipment, including biscuit and cookie production lines, chips line,cake line,automatic raw material feeding and dosing system,ovens and mixing machines. Mold size width: 800/1000/1200/1500/1800mm. According to different types of biscuits, the output of production is not the same. Capacity can achieve 100~5000kgs/h,
We has a strong reputation for producing reliable and efficient machinery that is easy to use and maintain. The company has a team of experienced engineers and technicians who are dedicated to researching and developing innovative new equipment and technologies to meet the evolving needs of the baking industry.
We has a global customer base, and its equipment is used by many well-known food brands and manufacturers around the world. The company has a strong commitment to customer satisfaction, providing comprehensive support services, including installation, training, and after-sales support.
Overall, SINOBAKE Group Limited is a trusted and respected player in the biscuit and cookie making machinery industry, and its equipment is renowned for its quality, reliability, and performance.
