US$40,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
GS, RoHS, CE, ISO9001
Maximum Lifting Height
25-30m
Maximum Lifting Weight
>16t
Product Name
Truck Mounted Crane Transport Vehicle
Keywords
Truck Mounted Crane
Wheelbase (mm)
1400+5650+1350
Maximum Climbing Grade (°)
30%
Transport Package
Standard Shipping Packaging or Customized
Specification
12000*2550*3750 mm
Production Capacity
50000pieces/Year
Packaging & Delivery
Package Size
8500.00cm * 2600.00cm * 3800.00cm
Package Gross Weight
15500.000kg
Product Description
TRI-RING Truck-Mounted Crane China Manufacturing Monorail Crane Transport VehicleProduct Description

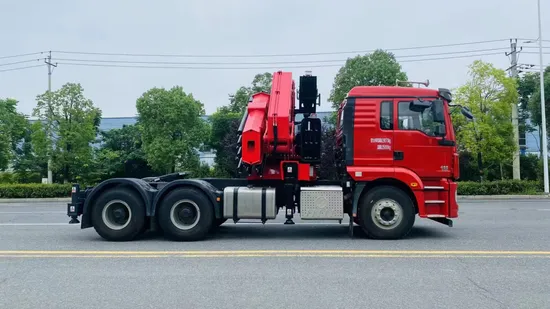

Truck Mounted Crane Transport Vehicle
A truck-mounted crane transport vehicle is a type of vehicle that is equipped with a crane mounted on the truck chassis. This type of vehicle is commonly used for transporting and lifting heavy loads in various industries, such as construction, infrastructure development, and logistics.
The truck-mounted crane provides a convenient and efficient way to transport heavy materials and equipment to different locations. The crane can be used to lift and load/unload items onto the truck bed or to lift and move items at the job site. This eliminates the need for additional equipment or labor to load and unload heavy items, saving time and resources.
Truck-mounted crane transport vehicles come in a variety of sizes and configurations, depending on the payload capacity and lifting requirements. They are designed to be versatile and mobile, allowing them to access remote or difficult-to-reach locations where traditional cranes may not be able to operate. Overall, they are a valuable asset for businesses that require heavy lifting and transportation capabilities.
Multi-angle Display
Product Parameters
| TRUCK MOUNTED CRANE TRANSPORT VEHICLE SPECIFICATIONS |
| Vehicle Model | STQ5318JSQS6 |
| Basic Vehicle Parameters | Drive Type | 8×4 |
| Total Weight (kg) | 31000 |
| Curb Weight(kg) | 17150 |
| Vehicle Appearance Parameters | Length (mm) | 12000 |
| Width (mm) | 2550 |
| Height (mm) | 3750 |
| Wheelbase (mm) | 1400+5650+1350 |
| Performance Parameters | Maximum Speed (km/h) | 89 |
| Maximum Climbing Grade (°) | 30% |
| Chassis Configuration Parameters | Engine | Engine Emission Standards | Euro II, III, IV, V, VI |
| Manufacturer | Guangxi Yuchai Machinery Co., Ltd./Weichai Power Co., Ltd. |
| Displacement(L) | 11L |
| Rated Power (Kw) | 295 |
| Cab | Type | With Semi-High Roof Cab |
| Model | H761 (2.4m Wide) |
| Standard Configuration | Integral Rearview Mirror, Bluetooth Player, Manual Hydraulic Flip, Driver Airbag Seat, Laminated Glass, Electric Doors And Windows, Wide Bumper, Central Locking, Multi-Function Steering Wheel |
| Gearbox | Gearbox Type | Manual, 12 Gears |
| Front Axle | Type | Drum Brake |
| Loadable Weight (Kg) | 8000 |
| Rear Axle | Gearbox Type | Drum Brake |
| Loadable Weight (Kg) | 16000 |
| Speed Ratio | 5.571 |
| Frame | Section Size (mm) | 300×80×(8+8+8) Full Three-Layer Outsourcing |
| Leaf Spring | Number of pieces | 12 Front Springs, 12 Rear Springs |
| Tire | Type | Steel Wire Tire |
| Quantity | 12+1 |
| Model | 12.00R20-18 |
| Steering System | Type | Hydraulic Power Steering System |
| Braking System | Brake Type | Drum Brakes With ABS Anti-Lock Braking System |
| Service Brake System Type | Dual Circuit Air Brake |
| Parking Brake System Type | Spring Brake |
| Parking Control Type | Manual Brake Operation |
| Electrical System | System Voltage | 24V |
| Battery | 140AHDual Battery |
| Upper Body Configuration Parameters | Crane | Maximum lifting mass (kg) | 8000 |
| Crane brand | XGCS |
| Maximum lifting height (m) | 25 |
| Rotation angle (°) | 360 |
| Maximum working pressure (MPa) | 26 |
| Crane weight (kg) | 5000 |
| Leg type | H |
| Leg span (m) | 5.9 |
| Cargo Box | Cargo box size (mm) | 8400×2550×600 |
| Material | Q235 |
| Material thickness | Wall thickness 3 Bottom thickness 5 |
| Other Configuration | | Triangular Warning Sign, Tool Kit, Spare Tire At The Rear Of The Frame, ABS, Air Conditioning, Front Lower Protection, Sun Visor. |
Detailed Photos
High-strength Steel Boom
Adopt BS700 high-strength steel, quality light boom, reliable industry main boomLuxury Cab
The cab has multimedia audio and heating and cooling ar-conditioning, which not only has a wide field of vision but also provides comfortable driving.Hydraulic Outrigger
Fully automatic hydraulic telescopic legs, joystick operation, easy to leam360 Rotation
50 forged intemal gear plate 360° rotation, with planetary reducerCargo Body
The cargo box is large in volume, strong and durable, easy to use, and beautiful. Technical Drawing
One-stop Service Process
1. Consultation and demand confirmation
2. Quotation
3. Contract signing
4. Deposit payment
5. Production and delivery
6. Balance payment
7. Shipping and logistics
Company Profile
FAQ
Q1. Is your company a factory or a trading company?
A: We are a leading manufacturer of special trucks, tank trucks, trailers, and spare parts in China. Welcome to visit our special vehicle production base in Suizhou City, China.
Q2. What are your payment terms?
A: T/T 30-50% as deposit, the rest to be paid before delivery. We will show you photos of the products and packages before you pay the balance.
Q3. What are your delivery terms?
A: EXW, FOB, CFR, CIF, DAF, DDU.
Q4. How about your delivery time?
A: Generally, it takes 20 to 30 days after receiving the advance payment. The specific delivery time depends on the items and quantity of the order.
Q5. Can you customize the products to meet my requirements?
A: Yes. We have a professional R&D team, and we can produce products exactly as you require.
Q6. What is the price of your products?
A: We are factory direct sales, so the price is very competitive. Different products have different prices. The price
also depends on your special needs. To know the exact price, please contact us!
Q7. Do you test all the goods before delivery?
A: Yes, we do 100% testing before delivery.
Q8: What service can I get from you?
A: We provide lifetime tracking service and a one-year free warranty for all our products. At the same time, we provide free training and technical support to guide you to repair the product. We will also provide original spare parts if necessary, and you only need to pay the shipping cost.
>>
