3~5 Ton Micobulk Cryogenic Liquid Oxygen Nitrogen Argon CO2 Storage Tanks LNG Pressure Vessels

Product Description

1m3~5m3 16bar Vertical High Vacuum Mobile Cryogenic Mini Microbulk Tanks
Microbulk tank is essentially a bulk storage system in miniature. A Microbulk tank delivery system replaces high-pressure or liquid cylinders with a stainless steel, low pressure storage tank.
MicroBulk can help you improve safety while freeing up valuable floor space on your site. When you eliminate cylinder handling, you also eliminate the headache of managing cylinder inventory while reducing the number of gas deliveries needed - this has both efficiency and sustainable benefits.

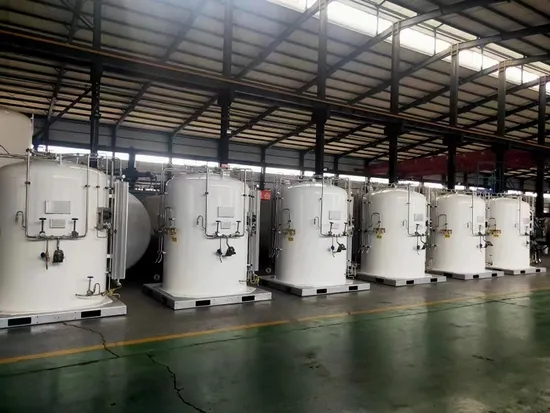

Detailed Photos


Product Parameters

Model		CDLS-3/1.6	CDLS-3/2.6	CDLS-3/3.4	CDLS-3/1.6	CDLS-3/2.2
Pressure rating		Low pressure	Medium pressure	High pressure	Low pressure	Medium pressure
Surface treatment		Polish / Painting	Polish / Painting	Polish / Painting	Polish / Painting	Polish / Painting
Thermal-insulating type		High vacuum multi-layers thermal-insulating
Base-support construction		Steel bearing suitable for forklift usage
Total volume (m3)		3.18	3.18	3.18	3.34	3.18
Effective volume (m3)		3	3	3	3	3
Maximum working pressure (MPa)		1.6	2.6	3.4	1.6	2.2
Design standard		GB/T 150.1~GB/T 150.4; GB/T 18442; Q/NMHJ 20-2017
Medium and maximum loading weight	LO2 (kg)	3420	3420	3420	/	/
	LN2 (KG)	2430	2430	2430	/	/
	Lar (KG)	4230	4230	4230	/	/
	LCO2 (KG)	/	/	/	/	3087
	LNG (KG)	/	/	/	1278	/
Daily Evaporation Rate (LN2)		≤0.6%	≤0.6%	≤0.6%	≤0.6%	≤0.6%
Gas Supply Capacity (Nm3/h)		40	40	40	40	40
Weight of empty storage tank (kg)		1849 (SS)	1983 (SS)	2223 (SS)	1893 (SS)	2394 (SS)
		1973 (CS)	2023 (CS)	2263 (CS)	1936 (CS)	2428 (CS)
Dimension (mm)		1850*1850*2945	1850*1850*2945	1850*1850*2945	1850*1850*3050	1850*1850*2945

Features
1. Convenience
Uninterrupted supply
Linde supply management - telemetry
No cylinder handling and change-outs
Reduced inventory management

2. Increased Productivity and Savings
Reduces downtime on cylinder change-outs
No residual returned to supplier
More efficient accounting and ordering
Minimum inventory maintenance
Productive use of labor force
Efficient use of production space
Lower maintenance costs

3. High Quality
Consistent high purity
Higher product yield
Uniform supply

4. Improved Safety
Eliminates cylinder handling
No worries about cylinder leaks
High-pressure cylinders replaced by low-pressure tanks


Customers
Minwen can provide a wide range of services that we take into account, so that customers can use them daily for the purposes required to perform their specific tasks and/or activities. We exported our industrial gas equipment to customers all over the world. In the past few years, we cooperated with customers from Brazil, Ecuador, Colombia, Paraguay, Chile, Indonesia, UAE, Ukraine, Syria, Guinea, Russia, Sudan, Angola, etc. We always create the opportunities for win-win business cooperation with our international customers.

Minwen Full Products
Minwen is an established company that has been providing one-stop service to clients all over the world.

We export below gas equipment with internationally proven quality and competitive prices.

- Cryogenic tank and dewar cylinders
- Lorry tanker and ISO tanks
- Cylinder filling pump and transfer pumps
- CNG and compressed H2 tube containers
- LNG/ CNG refueling stations
- Air separation plants
- PSA nitrogen/ oxygen plants
- Green Hydrogen generators
- Gas compressors
- Dry ice machines
- Ambient vaporizers

Certifications
With advanced technologies and strict quality management, our products have passed the major international third-party quality control certifications such as ASME, CE, and Famous classification society such like BV, TUV, Lloyds and etc.


Company Profile
Guangzhou Minwen Cryogenic Equipment Co., Ltd. is an established company specializing in industrial gas equipment and cryogenic solutions. With stable economy development in China, Minwen constantly strengthens its supply chain capabilities and resource integration capabilities.
We are always on the way of promoting the efficiency and competitiveness, to guarantee high-quality performance of our services.


FAQ
1. Which countries you can ship the equipment to?
We ship to worldwide, such as Russia, Paraguay, Brazil, Colombia, Indonesia, Middle East, Africa, etc.
2. May I have the best price from you?
Sure. We are always on the way of promoting our competitiveness on products price and service.
3. Is your equipment quality good?
Yes. With advanced technologies and strict quality management, our products have passed the major international third-party quality control certifications such as ASME, CE, and Famous classification society such like BV, TUV, Lloyds
4. Do you provide one-stop service so I can save my time and labor?
Yes. Minwen constantly strengthens its supply chain capabilities and resource integration capabilities. You will own a professional team in China by cooperating with Minwen.
5. Where is your company located?
Our Export Office is located in Guangzhou, with associated factories across China. This helps our international clients to integrate all the high quality resources together with Minwen.

---
