| US$5,000.00-50,000.00 | 1 Piece (MOQ) |

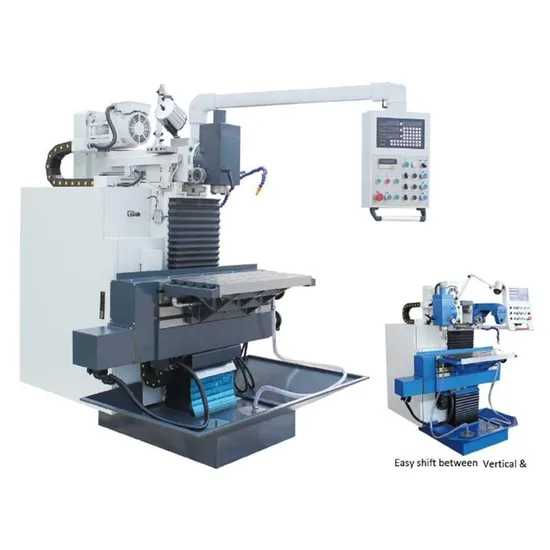

| An Innovative Machine with Latest Advanced Mechnics & Electrics | ||
| High Flexibility | High Accuracy | High Efficiency |
| • Combination of H & V spindles • Designed with flexible modules • Ideal for workshop & training | • Variable spindle speeds in 2 steps • Servo motors on X, Y and Z axes • Ballscrews on Xz Y and Z axes | • Centralized operation panel • E-handwheel or AUTO operation • Automatic lubrication |
| Specification | Unit | XL8132 | XL8140 | XL8145 |
| Horizontal table size(L x W) | mm | 750x320 | 800x400 | 850x450 |
| T-slots(pc'sizecenter distance) | mm | 5*14*63 | 6*14*63 | 7*14*63 |
| Vertical table size(L x W) | mm | 890x225 | 1020x225 | 1190x250 |
| T-slots(pc*sizecenter distance) | mm | 3*14*63 | 3*14*63 | 3*14*63 |
| Max. table load | kg | 160 | 200 | 300 |
| X/Y/Z axes travel | mm | 405/305/400 | 500/400/400 | 600/450/450 |
| Spindle taper(H.&V.) | - | NT40 | NT40 | NT40 |
| Spindle speeds(H.&V. .variable) | rpm | 40-2000 | 40-2000 | 40-2000 |
| Stroke of vertical spindle quill | mm | 60 | 60 | 60 |
| Feed rate(X/Y/Z axes) | mm/min | 10-1000 | 10-1000 | 10-1000 |
| Rapid traverse(X/Y/Z axes) | mm/min | 1200 | 1200 | 1200 |
| Main motor power | Kw | 3.7 | 3.7 | 5.5 |
| Feed motor torque (X/WZ axes) | Nm | 7.7/7.7/10 | 7.7/7.7/10 | 10/10/15 |
| Machine Weight | kg | 1450 | 1550 | 1750 |
| Machine dimensions(L x Wx H) | mm | 1500x1700x1800 | 1500x1700x1800 | 1600x1800x2000 |
