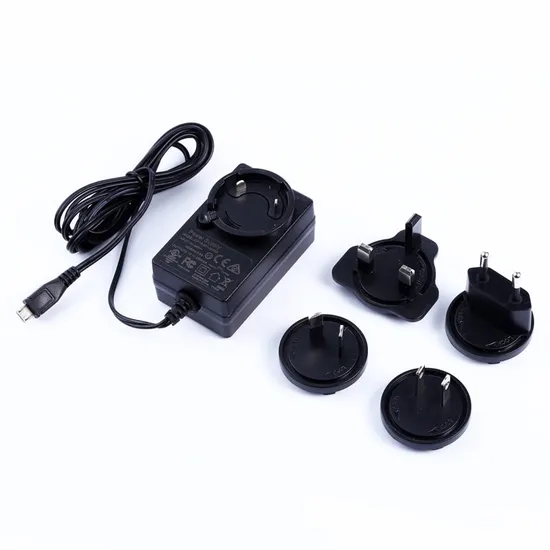

New Products Interchangeable Plug Adapter EU/Us/UK/Au/Cn Standard 18V 1A 30W Power Supply

Product Description

Quick Detail:
Brand Name:QUAWIN/OEM
Model Number:QW180-010-AI
Use:Wall-mounted Adapter,USB Charger,Interchangeable plugs,Desktop Power Supplies,Type C charger, Quick Charger,Car Charger and Wireless Charger.
Type:Electric
Place of Origin:Guangdong China (Mainland)
Certificate:CE GS UL CB FCC SAA RCM PSE KC CCC Approvals
AC Plug:EU/US/UK/AU/CN standard
Color:Black/White
Input voltage:90-264VAC 47/63Hz
Output voltage:18V
Output current:1A
Output power:18W
Ripple & noise:150mV
Output Regulation:±5%
Energy Efficiency:LEVEL VI
Safeties Standard:60950/ 60335/ 61558/ 60065
Output connector:1.5M Wire or USB interface
Operating Temperature:0ºC ~ +55ºC
Storage Temperature:-20ºC~+80%ºC
Dimension :71.2 * 43.2 * 30.3mm
Humidity:5~95%RH(non-condensing)
Primary to Secondary:50MΩ Min
Ripple and Noise:100mVp-p Max
Packaging & Delivery :
inner package: Industrial Packing Carton Size: 47*36.5*19 cm 50 pcs Per Carton
(Customized Packing To Be Acceptable)
Delivery Detail:sample within 10 work days,25~35 days for bulk order
Safety protections:
• Over Voltage protection
• Short Circuit protection
• Input protection
• Compliance with ROHS requirements

Typical model	Output Voltage	Output Current	Ripple & noise	Efficiency
QW050-030-AI	5V	3000mA	90mV	VI
QW060-030-AI	6V	3000mA	90mV
QW090-020-AI	9V	2000mA	90mV
QW090-030-AI	9V	3000mA	90mV
QW120-015-AI	12V	1500mA	120mV
QW120-020-AI	12V	2000mA	120mV
QW120-025-AI	12V	2500mA	120mV
QW150-020-AI	15V	2000mA	120mV
QW180-010-AI	18V	1000mA	150mV
QW240-010-AI	24V	1000mA	150mV

---
