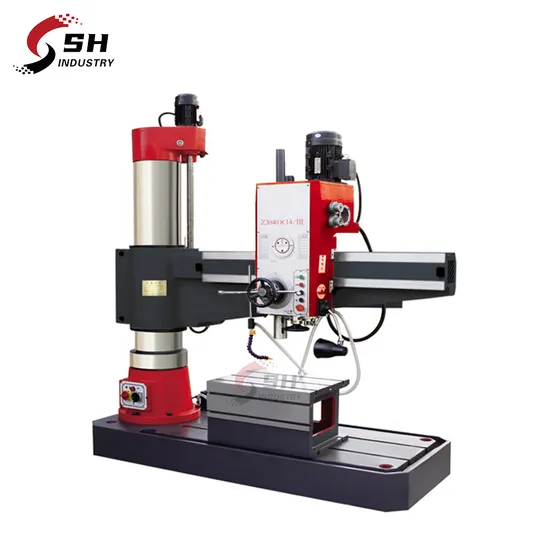

Universal Radial Drilling Machine Z3040X14-III Hydraulic Metal Radial Drilling Machine with Price

Product Description

Universal Radial Drilling Machine Z3040X14-III Hydraulic Metal Radial Drilling Machine with price
Product Description
Characteristics:
Hydraulic clamping
Hydraulic transmission
Hydraulic pre-selection
Electrical machinery double insurance
Main technical parameters:

SPECIFICATIONS	Z3040X14/III
Max.drilling dia(mm)	40
Distance from spindle axis to column surface (mm)	350-1370
Headstock travel (mm)	1015
Distance from spindle nose to table surface (mm)	260-1210
Spindle taper(MT)	4
Spindle speed steps	16
Spindle speeds range(r.p.m)	32-2500
spindle travel (mm)	270
Spindle feeding steps	8
Spindle feeding range(mm/r)	0.10-1.25
Rocker vertical moving speed(mm/min)	1.27
Rocker rotary angle	±90°
Maximum resistance to the spindle(N)	12250
Main motor power(kw)	2.2
Movements motor power (kw)	0.75
N.W/G.W(Kg)	2200
Dimension machine(L×W×H) (mm)	2053 x820x2483

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.

---
