Custom High Pressure One Two Four Steel Braided Spiral Reinforced Rubber Hydraulic Hose R1 1sn R2 2sn 4sp 4sh

Product Description

Product parameters:
1, SAE 100 R1 AT HT/ DIN EN 853 1SN HT
Tube: High temperature and oil resistant synthetic rubber
Reinforcement: One high tensile steel wire braid
Cover: Abrasion, high temperature, oil and weather resistant synthetic rubber
Application: Industrial, Agriculture, Low - High pressure hydraulic system
Temperature range: -40ºC to +135ºC
2, SAE 100 R2 AT / DIN EN 853 2SN HT
Tube: High temperature and oil resistant synthetic rubber
Reinforcement: Two high tensile steel wire braid
Cover: Abrasion, high temperature, oil and weather resistant synthetic rubber
Application: Industrial, Agriculture, Low - High pressure hydraulic system
Temperature range: -40ºC to +135ºC
3, DIN EN 856 4SP / SH
Tube: Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire spiral
Cover: Abrasion, weather resistant synthetic rubber
Application: High pressure hydraulic system
Temperature range: -40ºC to +121ºC

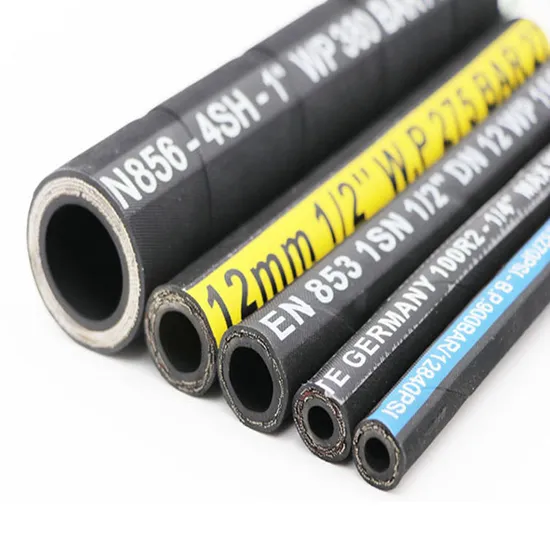

Product Display:
Product Datas:
1, SAE 100 R1 AT HT/ DIN EN 853 1SN HT

DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
	inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m	meters
5	3/16	4.8	9.5	11.8	25.0	3630	100.0	14280	89	0.19	50/100
6	1/4	6.4	11.1	13.4	22.5	3270	90.0	12840	102	0.21	50/100
8	5/16	7.9	12.7	15.0	21.5	3120	85.0	12280	114	0.24	50/100
10	3/8	9.5	15.1	17.4	18.0	2615	72.0	10280	127	0.33	50/100
13	1/2	12.7	18.3	20.6	16.0	2320	64.0	9180	178	0.41	50/100
16	5/8	15.9	21.4	23.7	13.0	1890	52.0	7420	203	0.45	50/100
19	3/4	19.0	25.4	27.7	10.5	1530	42.0	6000	241	0.58	50/100
25	1	25.4	33.3	35.6	8.8	1280	35.0	5020	305	0.88	50
32	1 1/4	31.8	40.5	43.5	6.3	920	25.0	3600	419	1.23	20 to 40
38	1 1/2	38.1	46.8	50.6	5.0	730	20.0	2860	508	1.51	20 to 40
51	2	50.8	60.2	64.0	4.0	580	16.0	2280	635	1.97	20 to 40

2, SAE 100 R2 AT / DIN EN 853 2SN HT

DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
	inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m	meters
5	3/16	4.8	11.1	13.4	41.4	6000	16	23720	89	0.32	50/100
6	1/4	6.4	12.7	15.0	40.0	5800	160	22840	102	0.36	50/100
8	5/16	7.9	14.3	16.6	36.0	5250	140	20000	114	0.45	50/100
10	3/8	9.5	16.7	19.0	33.1	4800	132	18840	127	0.54	50/100
13	1/2	12.7	19.8	22.2	27.6	4000	110	15720	178	0.68	50/100
16	5/8	15.9	23	25.4	25.0	3630	100	14280	203	0.8	50/100
19	3/4	19.0	27	29.3	21.5	3120	85	12280	241	0.94	50/100
25	1	25.4	34.9	38.0	16.5	2400	65	9420	305	1.35	50
32	1 1/4	31.8	44.5	48.3	12.5	1820	50	7140	419	2.15	20 to 40
38	1 1/2	38.1	50.8	54.6	9.0	1310	36	5140	508	2.65	20 to 40
51	2	50.8	63.5	67.3	8.0	1160	32	4560	635	3.42	20 to 40

3, DIN EN 856 4SP

DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
	inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m	meters
10	3/8	9.5	17.5	21.4	44.5	6450	180.0	26000	180	0.78	20 to 40
13	1/2	12.7	20.2	24.0	41.5	6000	166.0	24000	230	0.89	20 to 40
16	5/8	15.9	23.8	28.2	35.0	5000	140.0	20000	250	1.11	20 to 40
19	3/4	19.0	28.2	32.2	35.0	5000	140.0	20000	300	1.59	20 to 40
25	1	25.4	35.5	39.7	28.0	4000	112.0	16000	340	2.02	20 to 40
32	1 1/4	31.8	46.0	50.8	21.0	3000	84.0	12000	460	3.32	20 to 40
38	1 1/2	38.1	52.4	57.7	18.5	3650	74.0	10800	560	3.70	20 to 40
51	2	50.8	65.3	69.6	16.5	2360	66.0	9600	660	5.47	20 to 40

4, DIN EN 856 4SH

DN	Hose I.D		Wire O.D	Hose O.D	Working Pressure		Burst Pressure		Minimum Bend Radius	Weight	Length
	inch	mm	mm	mm	MPa	psi	MPa	psi	mm	kg/m	meters
19	3/4	19.0	28.4	32.0	42.0	6000	168.0	24000	280	1.61	20 to 40
25	1	25.4	35.2	38.6	38.0	5500	152.0	22000	340	2.00	20 to 40
32	1 1/4	31.8	41.9	45.8	32.5	4700	130.0	18800	460	2.64	20 to 40
38	1 1/2	38.1	48.8	53.3	29.0	4200	116.0	16800	560	3.36	20 to 40
51	2	50.8	63.2	68.1	25.0	3600	100.0	14400	700	4.98	20 to 40

Our Products Range:
1. Hydraulic Hose
Steel wire braided hose, Steel wire spiral hose, Texible braided hose
2. Industrial Hose:
Smooth(Wrapped) Air/Water/Oil/Gas/Lpg hose, Welding hose, Oxygen hose, Acetylene hose,
Lpg hose/Propane hose, Twin hose, Oil/Water suction and discharge hose, Steam hose, Sandblast hose,
Large diameter hose etc.
3. Automotive Hose
Air brake / condition hose, Power steering hose, Fuel oil hose,
4. PVC Hose
5. Hose Fitting / Coupling / Ferrule
6. Hose Machine
Application Field:
For engineering machinery, port machinery, aerospace, car manufacture, machine tool manufacturing, wind power manufacturing, shipbuilding industry, engine, textile machinery, petrochemical, agricultural machinery, mining machine, construction machinery, special vehicle, matall urgical machinery, injuction food machinery, printing machine, railway, hydraulic system, water conservancy construction
Workshop Show:

≡ FAQ
Q: Do you produce smooth or cloth wrapped cover?
A: Yes, we can produce both cover, which depends on customer's request.
Q: Can you produce product with my own brand?
A: Yes, OEM or ODM is warmly welcome by our company. Hope we both parties will benefit a lot through the cooperation.
Q:Could we get free samples?
A: Yes. We can provide the free sample for you
Q: Does your product have different color hose?
A: Yes, we currently provide black, grey, red, blue and yellow.
Q:Could you crimp hose?
A: Yes, we can crimp hose assembly for our customers
Q: How long does my order take to be delivered?
A: It usually takes 5 to 30 days, which generally depends on the quantity of your order and our storage.
