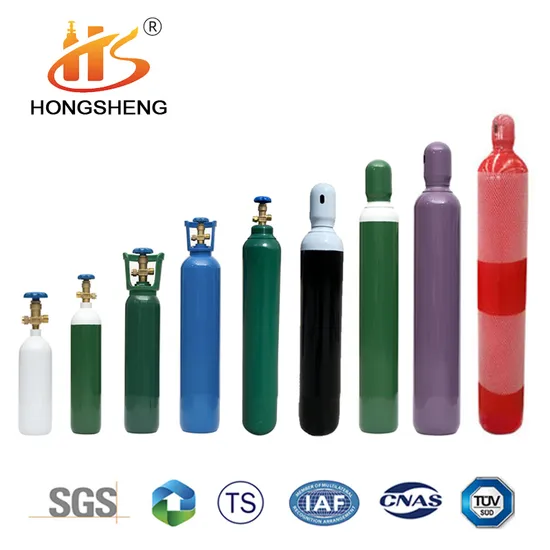

ISO CE 1L-80L Manufacturer of Seamless Steel Cylinders Oxygen/CO2 /Nitrogen/Helium/Argon /Mixed Air Bottle Gas Cylinders

Product Description

Product Description

1L-80L ISO9809-3 150BAR OXYGEN TANKS GAS CYLINDERS

Gas cylinder product parameter sheet

Type	Outside Diameter (mm)	Water Capacity (L)	Bottle Height (mm)	Weight (kg)	Working pressure (Bar)	Design wall thickness (mm)	Material Grades
WM 89-0.8-150	89	0.8	197	1.60	150	2.4	37MN
WM 89-1-150	89	1	240	1.83	150	2.4	37MN
WM 89-1.2-150	89	1.2	275	2.07	150	2.4	37MN
WM 89-1.4-150	89	1.4	310	2.30	150	2.4	37MN
WM 89-2-150	89	2	419	3.00	150	2.4	37MN
WM 108-1.4-150	108	1.4	233	2.81	150	2.9	37MN
WM 108-1.8-150	108	1.8	284	3.4	150	2.9	37MN
WM 108-2.0-150	108	2	310	3.62	150	2.9	37MN
WM 108-2.5-150	108	2.5	374	4.29	150	2.9	37MN
WM 108-3.0-150	108	3	440	4.96	150	2.9	37MN
WM 108-3.2-150	108	3.2	464	5.24	150	2.9	37MN
WM 108-3.5-150	108	3.5	503	5.8	150	2.9	37MN
WM 108-4.0-150	108	4	568	6.30	150	2.9	37MN
WM 108-4.5-150	108	4.5	630	6.90	150	2.9	37MN
WM 108-5.0-150	108	5	696	7.64	150	2.9	37MN
WM 140-3.4-150	140	3.4	324	5.3	150	3.8	37MN
WM 140-4.0-150	140	4	375	5.89	150	3.8	37MN
WM 140-5.0-150	140	5	447	6.96	150	3.8	37MN
WM 140-6.0-150	140	6	516	7.56	150	3.8	37MN
WM 140-6.3-150	140	6.3	540	7.88	150	3.8	37MN
WM 140-6.7-150	140	6.7	569	8.30	150	3.8	37MN
WM 140-7.0-150	140	7	591	8.63	150	3.8	37MN
WM 140-8.0-150	140	8	665	9.68	150	3.8	37MN
WM 140-9.0-150	140	9	744	10.7	150	3.8	37MN
WM 140-9.1-150	140	9.1	751	10.9	150	3.8	37MN
WM 140-10-150	140	10	818	11.9	150	3.8	37MN
WM 140-11-150	140	11	892	12.9	150	3.8	37MN
WM 140-12-150	140	12	966	14.3	150	3.8	37MN
WM 140-13.4-150	140	13.4	1069	15.5	150	3.8	37MN
WM 140-14-150	140	14	1112	16.4	150	3.8	37MN
WM 140-15-150	140	15	1188	17.5	150	3.8	37MN
WM 159-8.0-150	159	8	548	9.11	150	4.3	37Mn
WM 159-9.4-150	159	9.4	627	10.8	150	4.3	37MN
WM 159-10.0-150	159	10	660	10.9	150	4.3	37MN
WM 159-11.0-150	159	11	716	11.8	150	4.3	37MN
WM 159-12.0-150	159	12	780	13.1	150	4.3	37MN
WM 159-13.4-150	159	13.4	861	15.4	150	4.3	37MN
WM 159-15.0-150	159	15	932	16.8	150	4.3	37MN
WM 180-8.0-150	180	8	467	13.5	150	4.9	37MN
WM 180-10-150	159	10	571	15.4	150	4.9	37MN
WM 180-13.4-150	159	13.4	721	18.6	150	4.9	37MN
WM 180-15-150	159	15	792	20.2	150	4.9	37MN
WM 180-18-150	159	18	924	23.1	150	4.9	37MN
WM 180-20-150	159	20	1012	24.8	150	4.9	37MN
ISO 219-40-150	219	40	1310	47.8	150	5.7	37MN
ISO 232-40-150	232	40	1167	43.0	150	5.3	37MN
ISO 232-46.7-150	232	46.7	1345	48.9	150	5.3	37MN
ISO 232-47-150	232	47	1351	49.0	150	5.3	37MN
ISO 232-50-150	232	50	1430	50.0	150	5.3	37MN
ISO 267-60-150	267	60	1330	66.7	150	5.8	37MN
ISO 267-68-150	267	68	1490	73.9	150	5.8	37MN
ISO 267-70-150	267	70	1530	75.7	150	5.8	37MN
ISO 267-80-150	267	80	1730	84.7	150	5.8	37MN

Tc-3aam, Transport Canada regulation, for filling permanent gas, liquefied gas. Product Information:
1,A 10-litre oxygen tank; 34CrMo4 alloy steel; Iso9809-1 production standard; TPED 140mm or 159mm or 165mm cylinder outer diameter; Working pressure 200bar; Hydraulic test pressure 300bar; 2,Alias: 10L gas Cylinders ;10L 200bar gas tanks, 10L 200bar Oxygen tanks, TPED Industial Oxygen cylinders, TPED Industial Oxygen tanks 3,Oxygen cylinder body height 818mm or 660mm or 615mm; Oxygen cylinder body weight 11.9kg or 10.9kg or 12.5kg; Oxygen cylinder mouth thread PZ27.8,25E; 3/4-14 NGT, etc.; Maximum oxygen tank storage capacity is 2m3 (2000 liters); The minimum design wall thickness of oxygen cylinder is 3.1mm-3.6mm; 4,The 10-litre 200bar working pressure gas cylinder is made of 34CRMO4 alloy steel, which has higher working pressure and is safer. At the same time, it can also help users improve utilization rate.
The list of ingredients is as follows: List of chemical composition (mass fraction) /%

Mark	C	Si	Mn	P	S	S+P	Cr	Mo	V	Ni	Cu
37Mn	0.34~0.40	0.10~0.30	1.35~1.75	≤0.015	≤0.010	≤0.020	≤0.30	-	-	≤0.30	≤0.20
34CrMo4	0.30~0.37	≤0.40	0.60~0.90	≤0.015	≤0.010	≤0.020	1.9~1.2	0.15~0.3	-	≤0.30	≤0.20
