Skid Steer Loader Factroy Supply Big Power 25HP Diesel Engine Ht-V1000 Rubber Track Front Loader

Product Description

diesel engine rubber track kubota D1105 Diesel engine HT-V1000 Skid steer loader:
1. The width of the machine body is only 900mm, and it can freely enter and exit some small spaces for work (courtyard back door).
2. The vertical lifting design of the big arm, the maximum height of the bucket pin is 2350mm (comparable products are only 2100mm), and it can be loaded with high-rail trucks.
3. The engine uses EPA and Euro V double certified diesel power (Kubota D902-18.5KW from Japan), and the hydraulic system uses the Italian Lufthansa closed system (the mainstream configuration of foreign brand skid steer loaders). Mode pilot handle (one-hand control of walking), the boom and bucket can be operated during walking.
4. The big arm comes standard with a suspension function (the sweeper can follow the ups and downs of the ground)
5. Install a sponge pad at the operating position
6. Chassis height from the ground 185mm
7. At the beginning of the design, the convenience of maintenance was taken into consideration
specification of HT-V1000 Skid steer loader with kubota D1105 diesel engine:

Ltem	HT-V1000
	With Rubber Track
	kubota
	Metric	U.S.
Key Specifications
Rated Power (KW)	18.4(25Hp)
Operating Weight	1538 Kg	3390 Lb
Rated Operating Capacity	454 kg	1000 Lb
Ground Pressure (Rubber)	2800 Kg/squar meter	3.98 Psi
Auxiliary Std Flow	45 L/Min	12 Gal/Min
Rotating speed (Rpm)	2800
Noise (Db)	≤95
Engine
Emissions Tier	EU NRM 97/68/EC Stage 5
	EPA Tier 4 Final
Engine Cooling	Liquid
Engine Fuel	Diesel
Displacement	1.131 L	69 in³
Number of Cylinders	3
Performance
Tipping Load	1315 KG	2898 Lb
Travel Speed	5.8 Km/h	3.52 Mph
Travel Speed - Reverse	3.9 Km/h	2.4 Mph
Capacities
Fuel Tank	25 L	6.6 Gal
hydraulic system
Hydraulic oil tank capacity	22 L	5.8 Gal
Pump Capacity	45 L/ Min	12 Gal/Min
System Relief @ Quick Couplers	200 Bar	2900 Psi

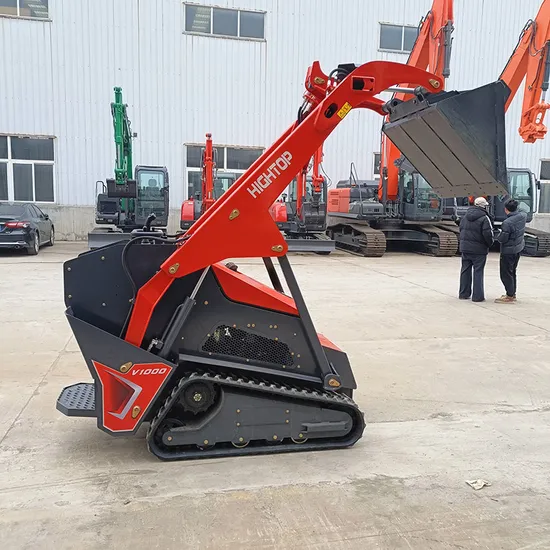

Photos of HT-V1000 Skid steer loader with kubota D1105 diesel engine :
our company:
SHANDONG HIGHTOP GROUP established in 1980, is an important and a large construction engineering
equipment joint-stock enterprise group, It has several wholly-owned subsidiaries, include China Machinery
industrial Co.,ltd. company headquarters is located at Huoju Industrial Park, National High Tech Zone,Jining
City, Shandong province of China.
please contact Cassie wang for more convenient contact.

---
