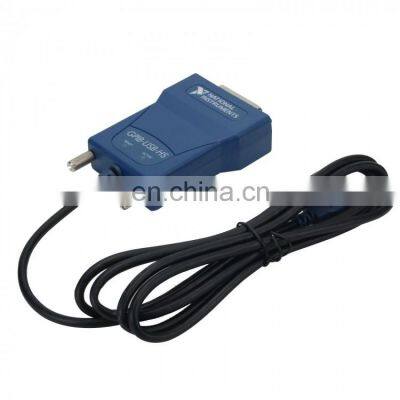

National Instruments GPIB-USB-HS Interface Adapter IEEE 488 with Original Chip

Product Description

Product Description
National Instruments GPIB-USB-HS Interface Adapter IEEE 488 with Original Chip Product Description Description:The GPIB-USB-HS takes advantage of Hi-Speed USB to provide superior performance of up to 1.8 MB/s with the standard IEEE 488 handshake and 7.7 MB/s with the high-speed IEEE 488 handshake (HS488).The compact GPIB-USB-HS transforms any computer with a USB port into a full-function, plug-and-play IEEE 488.2 controller for up to 14 programmable GPIB instruments.The small size and light weight of the GPIB-USB-HS make it ideal for portable applications using a laptop computer or other applications where the computer has no available internal I/O slots.The RoHS-compliant GPIB-USB-HS is shipped with NI-488.2 for Windows, Mac OS X, or Linux.Parameters:- Product: GPIB-USB-HS- Cable Type: USB- Product Number: 779704-01, 778927-01- System: For Windows, Mac OS X, or Linux.- LabVIEW RT Support: No- Voltage: 5V DC- Current: 500 mA- GPIB Standard: HS488, IEEE 488.1, IEEE 488, IEEE 488.2- GPIB ASIC Chip: TNT5004- Port Number: 1- Max. Baud Rate (IEEE 488.1): 1.8 MB/s- Max. Baud Rate (HS488): 7.2 MB/s- Max. Cable Lenght: 4M- I/O FIFO Cache: 64B, 32B- Max. Connection Port: 14- Length: 10.7 cm, Width: 6.6 cm, Height: 2.6cm- I/O Connector: 24-pin IEEE 488- Operating Temperature: 0 to 55℃Package Included:- 1 x GPIB-USB-HS Adapter- 1 x Driver Disk- 1 x User ManualNote: The chip is the original type. Detail photo FAQ Q1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Sample ususally take within 3 working days. Q3. Do you have any MOQ (minimum order quality)limit?A: For standard product, usually 1pcs/item. For the OEM order, MOQ at least 50pcs/item. Q4. How to proceed an order?A: After buyer confirm the product&price is ok and ready to buy, order will be please tell us your delivery address, phone number, sometimes need email. Then we can draft the order and it will have a alibaba paying link. Q5. After paid, what info of the supplier provided? A: Tracking number Q6: Do you offer guarantee and after-service for the products?A: Yes, 6- 12 months warranty for our products. Note: We will do not take the responsibility for Man-made damage or improper operation. Delivery demage will be negotiate. Packing and ShippingPackage: Normally we use the standard paper package to export worldwide. Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present. 2. By chinese small parcel, usually for the customer to save the cost. But Chinese small parcel have the risk for lost parcel. Note: If we got the parcel back, we only can refund the item cost. If we didn't get the parcel,then sorry we can't refund any.3. By Air: Delivery from the Shenzhen airport to customers’ destination city air port.4. By Sea: Delivery from the Shenzhen sea port . Company informationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over 5 years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery

---
