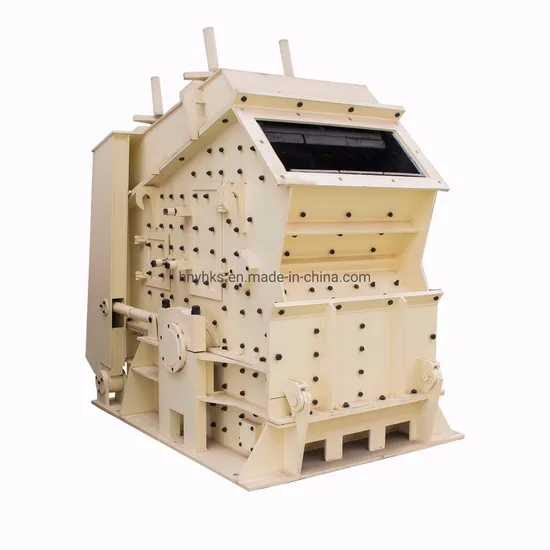

Small Quary/Basalt/Granite/Gold/Stone/River Pebbles / Quartz Vertical Impact Crusher

Product Description

Small Quary/Basalt/Granite/Gold/Stone/river pebbles / quartz Vertical Impact Crusher
Application:
1.widely applied in mining, road & railway, concrete, chemical and building material industries.
2.Ores and rocks with various hardness
3.Concrete basis and steel structure basis
4.Stationary, half-mobile and mobile applications
Working principle:
The impact crusher crushes materials with impact force. When the materials enter the blow bar area, they are crushed due to the high-speed impact of the blow bar and are thrown to the impact plates on the rotor for secondary crush. Then the material will be shot back to the blow bar again for the third crush. This process repeats until the materials are crushed, then discharge from the discharge port. By adjusting the gap between the impact rack and rotor rack, we can change the finished material size and their shape.
Features of impact crusher:
1.Cubic-shaped end products;
2. Adjustable end products sizes, simple crushing process;
3. The board hammer is made of high chrome and, abrasion-resistant, and with powerful impact force
4. Non-key connected, easy to maintain, cost-saving;
5. Sound construction and high efficiency.
Technical parameters of impact crusher:

impact crusher Model	Feed Opening (mm)	Max. Feed Size (mm)	Capacity (t/h)	Motor Power (kw)	Weight (t)	Dimensions (mm)
PF-1007	820×700	300	24-45	55	9.5	2400×1558×2660
PF-1010	1170×720	350	50-80	75	10	2532×1985×2196
PF-1210	1090×465	350	80-130	110	14	2638×2037×2713
PF-1214	1440×465	350	100-160	132	18	2580×2400×2810
PF-1315	1532×560	350	140-200	200	19.3	2840×2748×2556
PF-1316	1690×859	350	150-220	200	19.5	3096×2850×2667
PF-1516	1840×859	350	300-350	250	24.5	3700×3500×7280
PF-1814	1930×580	350	350-400	132×2	32	2816×2902×3062

About our company:
Henan Yuhui Mining Machinery Co, Ltd. is located in Zhengzhou city in central plains, which adjoins to ancient millennium Shaolin Temple (Kung fu Origin) to the south, and Yellow River to the north. With Kailuo highway and Longhai railway, it owns convenient transportation and pleasant scenery.
Established in the 1970s, Henan Yuhui Mining Machinery Co.,Ltd. has developed into a famous manufacturer through 20 years struggling and progressing, specialized in producing mineral dressing equipment, compound fertilizer equipment, cement equipment, as well as sand making equipment.
YuHui provides a connected sequence service with designing process flow, on-site civil engineering guidance, installing and debugging the equipment, training technical and operating people for clients. The company guarantees repair, replacement and refund and is warrantable to the complete machine for one year. It supplies accessories for a long period. Welcome inquiries and purchase from both new and old customers as well as worldwide friends.
About our customers:
Each year we have the customers from world wide to our company for visit, like America, Malaysia, Indonesia, Philiphine, Sudan, Namibia, Zimbabwe, Zambia, Ethiopia, india, peru and so on.
Welcome to our company for visit.

If you are new for this business, we will help you
In order to find the suitable models and design the best stone crusher plant or sand making line for you,pls kindly inform us the following information:
1. Which kind of material you are going to crush? Soft stone (dolomite, limestone) or hard stone ( granite, basalt, river pebble )?
2. What's the max input size of the material? (In inch,centimeter or milimeter)
3. What's the granularity of the final products you need? (in milimeter, micron or mesh)
4. What's the production capacity you want? How many tons or cubic meters per hour?
5. You want only a Crusher, or a complete Crushing Production Line?

---
