Basic Info.
Automatic Grade
Automatic
Applicable Industries
Building Material Shops, Manufacturing Plant, Reta
Marketing Type
Ordinary Product
Core Components
Pressure Vessel, Motor
Applicable Material
PVC, UPVC
Key Selling Points
High Productivity

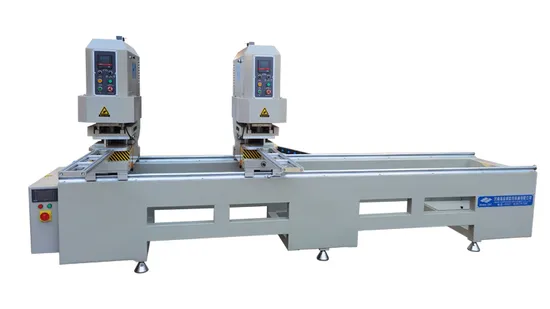

Product Name
2 Heads UPVC Welding Machine
Welding Range
400----3500mm
After Warranty Service
After Warranty Service
Specification
4300x1100x1700
Production Capacity
50sets/Month
Product Description
Products Description
Main Features:
1.Using pneumatic adjustment targeting, allows users to select a variety of welding ways ,whether seam or seamless,to realize various welding requirements.Very simple to operate.
2.Two heads can work simultaneously and individually.
3.Weld two-point, single point, transom, cross -transom and special angle.
4.Strict control of welding gap size,make sure the welding parts surface clean both inside and outside smoothly.
5.High load-bearing,the whole machine made by steel.
6.Coextrusion tool is precision manufactured by induction hardening.The tools also changeable.
7.The head use pneumatic locking device to be fastened .
Main Technique Parameter:
Power supply
| AC 220V 50Hz
|
Total Power
| 2.5kw
|
Air pressure
| 0.5-0.8Mpa
|
Air consumption
| 200L /min
|
Welding material length
| 400-3500mm
|
Welding material height
| 20-120mm
|
Welding material width
| ≤120mm
|
Welding mullion width
| ≤110mm
|
Welding Temperature
| 260 ºC
|
Clean type
| Both surface
|
Size
| 4300*1100*1700mm
|
