45W Series Pd Fast Charger Meet QC4+ Pd3.0 Pd2.0 Bc1.2

Product Description

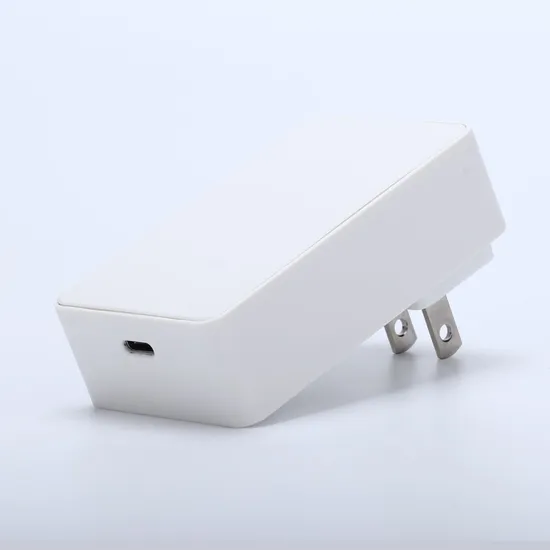

45W series PD Fast Charger

45W SERIES PD FAST CHARGER SPECIFICATION
Input	Rated input voltage	100-240Vac
	Operating range	90-264Vac
	Rated input frequency	50/60HZ
	Rated input current	1.5A max
	Power consumption (no-loading)	0.075W max
Output	Nominal DC output voltage	Fixed PDO					PPS PDO
		5V	9V	12V	15V	20V	3.3-16V	3.3-21V
	Rating load current (Max)	3A	3A	3A	3A	2.25A	3A	2.25A
	Rating output power	15W-45W
	Load regulation	+/-5%
	Ripple and noise	Fixed PDO					PPS PDO
		5V	9V	12V	15V	20V	3.3-16V	3.3-21V
		120mV	150mV	200mV	250mV	300mV	250mV	300mV
AC pin	Version	US EU UK AU
	Type	Detachable pin
Protections	Over voltage protection	Yes
	Short-circuit protection	Yes
	Over current protection	Yes
Envionmental requirements	Operating Temperature	0°C +40°C
	Storage Temperature	-20°C +70°C
	Operating humidity	5%-95% RH (Non Condensing)
	Storage humidity	5%-95% RH (Non Condensing)
Size	78*48*22.5mm (L*W*H)
Approvals	UL, CE, UKCA, RCM, CB, FCC
Compliance	RoHS, PAHS, REACH, WEEE

Features PD,PPS & QC fast charger, meet QC4+, PD 3.0, PD 2.0, BC 1.2
Intelligent recognition, automatically match the current for your device.
Compatible with multiple devices
Complete protection function
Type-C output port
Compact and portable design
Applications Audio & Video devices
Digital devices
Household appliances
Office electronics
Computers & laptops
Network devices
Security systems
Industrial equipments
Certificates and Approvals UL, CE, UKCA, RCM, CB, FCC
Protection Over voltage protection
Short-circuit protection
Over current protection
EMI Emission Radiated and Conducted Emission
FCC part 15
EN55032
EMS Immunity Electrostatic Discharge Immunity: EN 55035, EN 61000-4-2
Radiated Field Immunity: EN 55035, EN 61000-4-3
Fast Transient Immunity: EN 55035, EN61000-4-4
Surge Immunity: EN 55035, EN61000-4-5
45W series PD Charger certified status
Packing

Similar Products
Application

Company Brief Introduction Seanen is a technology company specializing in developing, manufacturing and marketing high quality AC/DC adaptors, switching power supplies, chargers. Being professional and dedicated to the industry, Seanen is aim to provide the highest standard products combined with extra safe, high efficiency, high stability, cost effective and environment-friendly.
Our standard products cover the full range items, from 0.5W to 200W output power. Safety approved including UL/cUL, TUV-GS, CE, UKCA, RCM, PSE, K-mark, CCC, and FCC etc. Compliant with DOE VI, RoHS, PAHs, REACH and WEEE.,
We can also offer customized service to design the optimal solution to meet the most exacting requirements that your applications demand and put into production promptly.
Based on first-class products, competitive price and excellent service, we believe it will be a long term business relationship once you work with us.

FAQ
1. Are your products compliant with efficiency level VI ?
A: Yes, our products are compliant with USA DoE VI, and EU CoC Tier2 as well.
2. Are your products compliant with RoHS ?
A: Yes, all of our products are compliant with RoHS, also REACH and PAHs.
3. Can I get a couple of samples?
A: Of course you are welcomed to get samples for free.
4.What's the MOQ you accept?
A: MOQ is 2,000pcs.
5. What are the advantages of your products?
A: Our products have reliable quality with completed certifications and on time delivery. Besides, our integral manufacture (e.g.moulding, plastic injection, metals and cables making etc) can ensure our competitive price.

---
