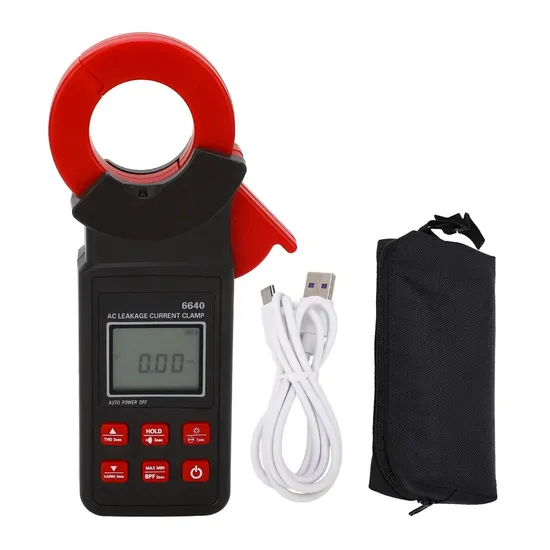

AC 0.00mA-300A Dia 40mm Clamp Leakage Current Meter

Product Description

Digital Multimeter AC DC 1000A Resistance/Capacitance/Frequency Clamp Meter 6640 AC 0.00mA-300A Φ40mm Clamp Leakage Current Meter CT Technology Lithium Battery Multifunctional Anti Interference High Accuracy Backlight
Feature:
1. AC Current Meter: Clamp meter is specially designed for measuring AC leakage current and current, adopts unique CT technology and digital integration technology, with small size, high accuracy and complete functions.
2. Anti Interference: The clamp head adopts magnetic shielding technology, which is hardly affected by external electromagnetic field, has high measurement accuracy and good stability.
3. Multi Functions: The clamp meter has true RMS measurement, filtering function, maximum minimum average value, harmonic, distortion rate and other test functions.
4. Easy to Use: The current meter also has backlit, flashlight, data retention, communication and other functions, uses large capacity rechargeable lithium battery, portable and easy to use.
5. Wide Applications: Widely suitable for electric power, communication, meteorology, railway, oil field, construction, metrology, scientific research and teaching units, industrial and mining enterprises and other fields.
Specification:

Power Supply	Lithium battery DC 3.7V/1000mAh
LCD Size	43mm×38mm; display area: 36.5mm×29mm
LCD Backlight	Yes
Measurement Range	0.00mA~300A
Solution	10uA
Measurement Accuracy	0.00mA~999mA ±1.5%rdg±5dgt
	1.00A~300A ±1.5%rdg±5dgt
	300A~599A ±2.0%rdg±5dgt
	600A~1199A ±2.5%rdg±5dgt
	1200A~2000A ±2.5%rdg±5dgt
Clamp Jaw Size	Φ40mm
Meter Size	192mm×96mm×40mm
Weight	About 256g (include battery); total weight 470g(include accessory)
Flashlight	Yes
Filter Function	Filter open: 40Hz~70Hz; Filter close: 40Hz~1kHz
Harmonic Analysis	21 times (above 10mA)
Distortion Rate	Yes (above 10mA)
Max/Min Value	Yes
Average Value	Yes
Data Hold	Yes
Memory	2000 groups (storage through APP)
Overflow Display	Exceed measure range overflow function: "OL"symbol display
Bluetooth Communication	Yes, can test or view the test result on mobile after install the App
Automatic Shutdown	5 Minutes after power on, the meter shut down automatically without any operation to reduce battery consumption.
Battery Level	4-cell battery display
Sampling Rate	2 times/second
Working Current	60mA (turn on flashlight 72mA)
Line Voltage	Line testing below AC600V
Insulating Strength	AC 3700V/rms(between the core and outside shell)
Suitable Safety Standard	IEC1010-1, IEC1010-2-032, Pollution level 2, CAT III(600V)
Working Condition	-10ºC~50ºC; below 80%RH
Storage Condition	-20ºC~60ºC; below 70 %RH

Package List:
1 x Clamp Current Meter
1 x USB Cable
1 x Manual
1 x Storage Bag
