| Negotiable | 1 Set (MOQ) |

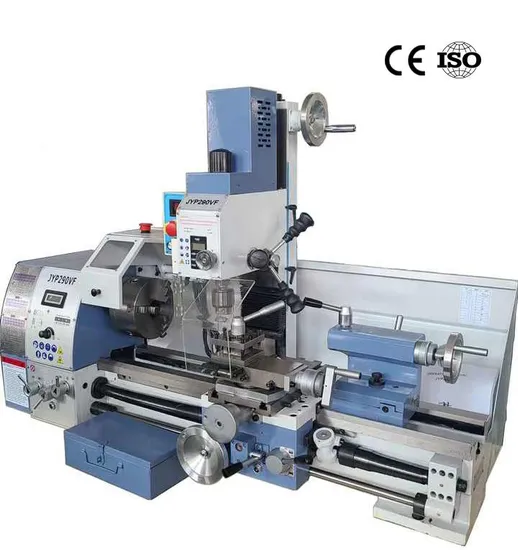

| Combination Lathe Feature |
| ·Supersonic frequency hardened bed way |
| ·Spindle speed readout |
| ·Variable speed |
| ·Precision roller bearing for spindle |
| ·High quality steel, ground and hardened gear inside headstock |
| ·Various threads cutting function available |
| Specifications | JYP290VF | |
| Turning | Swing over bed | 280mm |
| Distance between centers | 700mm | |
| Spindle bore | 38mm | |
| Taper of spindle bore | MT5 | |
| Number of spindle speed | Variable speed | |
| Spindle speed | 50-1800rpm | |
| Metric threads range | 18 kinds (0.2-3.5mm) | |
| Inch threads range | 21 kinds (8-56T.P.I) | |
| Motor | 1100W DC motor/ 850W AC motor | |
| Milling & Drilling | Max. drilling capacity | 20mm |
| Max. end milling capacity | 16mm | |
| Max. face mill capacity | 63mm | |
| Spindle travel | 50mm | |
| Z travel | 260mm | |
| Spindle taper | MT2 | |
| T-slot size | 10mm | |
| Range of spindle speed | 50-2250rpm | |
| Motor | 600W | |
| Net weight | 280/321kg | |
| Packing size(LxWxH) | 140x75x101cm | |
| Standard Accessories | Optional Accessories | |
| ·3 jaw chuck | ·4 jaw chuck | |
| ·Drawing bar | ·Back plate | |
| ·Arbor | ·Face plate | |
| ·Toolbox & tools | ·Steady rest | |
| ·Splash guard | ·Follow rest | |
| ·Chip tray | ·Collet chuck | |
| ·Turning tools | ||
| ·Digital depth rule | ||
| ·Speed counter | ||
| ·Stand |
