Product Description
Product Description

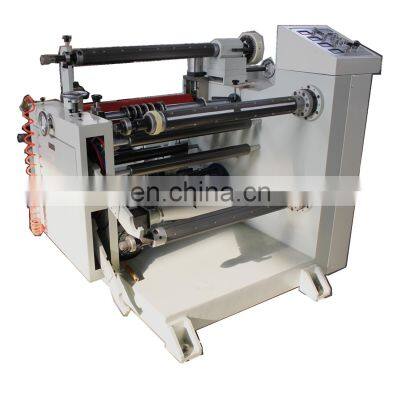

Paper Slitter Machine 1. Tehnical Data Auto Speed : 80m/minMaterial roll max length : 650mmFeeding material diameter : 600 mmPut film diameter :350mmWinding diameter : 450mmPrecision cutting : ±0.1mmVoltage:220V 50HZMain Motor Power: 2.2kw Total Power : 3kw Raw material max hole diameter : 3″Compressed air :(0.4-0.6)Mpa(customer prepare by themselves .)Standard Slitting finished products Min width: 25mmMachine size : 2400*1700*1300mmWeight : 1.5T2. Feeding DeviceFeeding air expansion shaft(3″Pad shaft) 2 setsmagnetic powder brake 25N 1 set Release of membrane magnetic powder brake 25N 1 setFeeding tension control system 2 Sets 3. Slitting systemUpper circular cutter shaft Dia.65 1SetUnderneath circular cutter shaft Dia.65 1SetManual fine-tuning lock device Main function profileFrequency control of motor speed, more easy operation , more accuracy control .Double the receiving of the center axis of winding , rewinding.Double receiving magnetic power tension independent control , can rewinding at the same time , and also can independent use .The electronic counter with function of automatic count meter to set length , automatic stop , accuracy is 0.01 , and error ±0.15m , independent fan of waste discharge. Model650 multifunction slitting laminating machineMax Feeding Width ( mm )650Main Engine Power ( KW )2.2Speed (M/M )80Size ( mm )2400*1700*1300Weight ( KG )1000Rewinding Diameter (mm )600Winding Diameter ( mm )450Precision ( mm )±0.10Power220V 50Hz
>>
