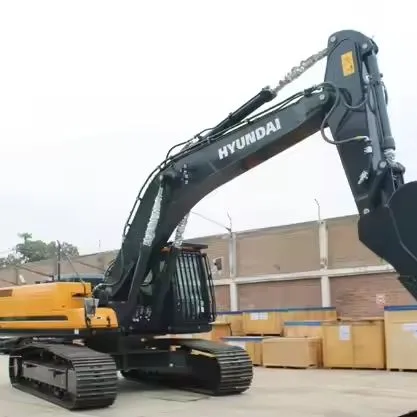

Factory Price 40ton Hydraulic Excavator Hx405 Crawler Excavator

Product Description

Product Parameters

SPECIFICATIONS
GENERAL
Operating Weight	41.3 ton
Bucket Capacity	1.9 m³ (ROCK)
ENGINE
Emission	T4
Engine Model	L9
Rated Power	254 kW/341 hp/346 ps/1900 rpm
Max. Torque	1520 N.M/1100~1400 rpm
HYDRAULIC
Main Pumps Rated Flow	2×333 l/min
Implement Circuit (Power Boost)	350 kgf/cm²
PERFORMANCE
Swing Speed	9.83 rpm
Travel Speed	5.12 km/3.21 hr
Max. Gradeability	35 deg
Max. Traction Force	35.3 ton
Bucket Digging Force (ISO)	24.7 ton
Arm Digging Force (ISO)	19.7 ton
TANK CAPACITY
Fuel Tank	585 ℓ
Hydraulic Tank	210(414) ℓ
DIMENSIONS
Overall Length	11410 mm
Overall Height	3775 mm
Overall Width	3340 mm
Tail Swing Radius	3620 mm
Ground Clearance	570 mm
WORKING RANGE
Boom Length	6500 mm
Arm Length	2800 mm
Max. Digging Reach	10950 mm
Max.Digging Depth	6910 mm
Max. Digging Height	10780 mm
Max. Dumping Height	7650 mm
Min. Swing Radius	4345 mm

Product Description
Superior Performance
HX405L China IV excavator has high work efficiency and productivity, and can complete a large amount of excavation work in a short time. This model of excavator is equipped with an advanced hydraulic system, which makes the operation more flexible and precise, and the user can control the excavator's action more accurately.
Superior Adaptability
The HX405L China IV excavator has a strong structure and long service life, which can work in harsh construction site environments, and has good durability and reliability. The maintenance cost of this type of excavator is low, the parts are easy to obtain, and the maintenance process is simple, which reduces the maintenance pressure of users.
Easy Operation
HX405L China IV excavator has strong stability and comfort, and adopts advanced suspension system and shock absorption device to reduce the driver's fatigue and physical discomfort. The excavator adopts an advanced power system, which has low energy consumption and emissions, and is environmentally friendly
