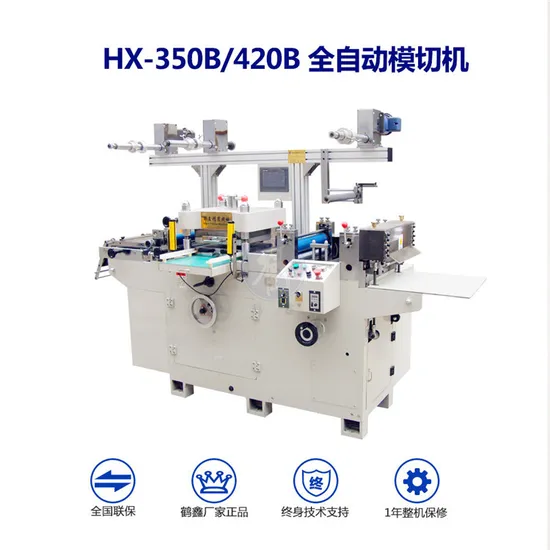

Copper Foil Die Cutting Machine (HX-350B)

Product Description

This machine enjoys laminating_unwinding_laminating_waste discharging_die cutting_sheeting_rolling, all the them are completed in one process by the computer control.
Application:
Adhesive sticker, protective film, electronic shieldingmaterial, PVC,
Mylar, double sided adhesive, aluminum foil/copper foil, foam and all kinds of LCD diffuser, reflector plate, buffer plate, film, silicon adhesive tape.
This machine is equipped with independent laminating and unwinding machine, winding machine, waste discharging is adopted by import motor, frequency converter.
Optional:
1. Adding conveyor belt 2. Full-cut for die cutting
Optional configurations:
1. Hot stamping 2. Punching 3. Laminating
Features:
1. Max web width: 350mm
2. The telerence: +/-0.2mm, precision: 0.1mm
3. Material thickness range: 0.05-3mm
4. Delivery time: About 25days5. Payment: T/T
6. Manufacture experience: 30 years
7. Export experience: 20 years
Charateritics:
1. The machine enjoys multi-layer sticking, partial sticking, feeding- filming-die cutting- waste draining- slitting-rolling
2. All of them are completed by the computer control by one turn.
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines.

Model	HX-380B
Max web width	350mm
Die cutting size	350x400mm
Die cutting speed	20-180T/M
Positioning precision	± 0.05mm
Main machine power	2.2Kw
Overall	2560x1150x1870mm
Power	380V
Total power	4Kw

---
