Product Details
Product Description
Product Description

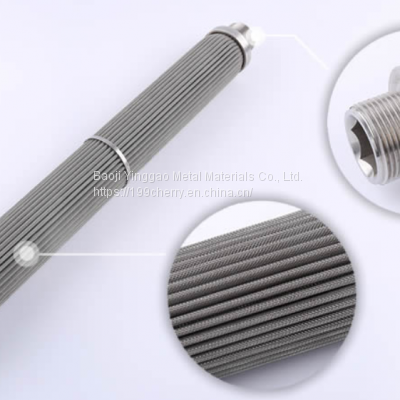

Customized connector pleated sintered filter cartridges are filter elements that are made of stainless steel wire mesh or sintered metal fiber felt. The filter cartridges are formed by sintering at the contact points of the wire mesh, creating a porous filter cylinder with high surface filtration performance. The cartridges feature a pleated design, providing a larger filtration area and strong dirt-holding capacity. They can be provided with double-open ends or single-open end, often accompanied by threaded end gaskets (such as O-rings) to reduce friction.
Compared to cylindrical filters of the same size, the folded design of pleated sintered filter cartridges can offer up to 3 times more dirt-holding capacity while occupying less installation space.
Pleated sintered filter cartridges can be easily cleaned through backwashing, reverse flow, ultrasonic cleaning, or other methods. Even after 3 to 5 cleaning cycles, they can still maintain over 90% of their original filtration efficiency.
Specifications
Material: Stainless steel 304/316L or other special alloys
Filtration precision: 1-300 microns
Porosity: Up to 90%
Length: 99-1490 mm
Diameter: 35-80 mm
Operating temperature: -200°C to 600°C
Cleaning methods: Backwashing, ultrasonic cleaning
Connector: As per drawing requirements
Features
High dirt-holding capacity: The pleated design provides a larger filtration area, allowing the filter cartridge to efficiently capture and retain dirt, extending its service life.
Corrosion resistance: The filter cartridge is made of stainless steel throughout, exhibiting excellent corrosion resistance and suitable for filtering various corrosive media.
High strength and stability: The filter cartridge possesses high strength and stability, capable of withstanding high pressure and harsh operating conditions, ensuring reliable operation of the filter.
Multiple filtration grades: Different filtration grades of filter cartridges can be provided to meet various particle size filtration requirements.
Easy to clean: Pleated sintered filter cartridges can be cleaned through various methods, including backwashing, reverse flow, and ultrasonic cleaning, while still maintaining high filtration efficiency after cleaning.
Applications
Chemical industry: Used for liquid and gas filtration and separation.
Oil and gas industry: Used for oilfield water treatment, gas purification, and oil recovery.
Food and beverage industry: Used for liquid filtration in food processing and beverage production, such as juice, beer, and milk clarification filtration.
Pharmaceutical industry: Used for particle and microbial filtration in pharmaceutical production to ensure product purity and safety.
Electronics industry: Used for filter protection of electronic components, preventing dust and particles from entering the equipment and improving product quality and reliability.
Automotive industry: Used for filtration of lubricating oil and fuel, protecting the engine and fuel system from particles and impurities.
Other industrial applications: Including water treatment, metallurgy, textile, and other fields, suitable for liquid and gas filtration and purification.
>>
