Dialead Top Quality Single Head Automatic Polishing Machine for Stone

Product Description

Product Description
DIALEAD is the top stone machine and stone tools manufacturer in China with a history of more than 20 years.

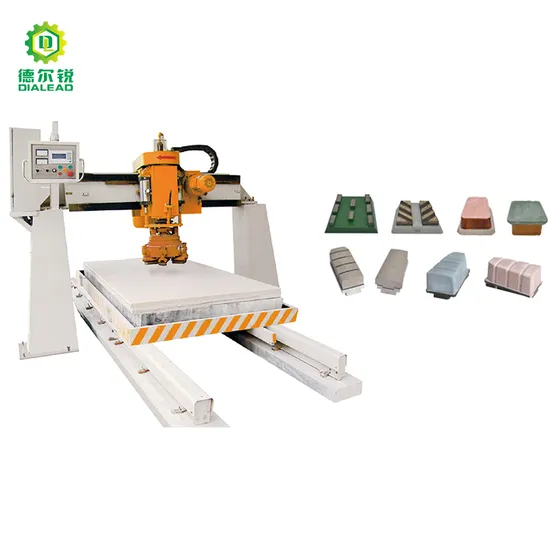

Single Head Automatic Polishing Machine is widely used for surface grinding & polishing, such as tombstones, slabs with Automatic operation. Machine for Granite or marble is available to your choice.
Feature:
1. It should equipmed with the Air compressore for adjust the pressure on polishing diffierent thickness of stone.
2. Micro compture of Panasonic centrally control the machine for automatic polishing.
3. Automatic & Manual elevating devices for customer's choice.

Technical Data
All technical data can be customized to meet your specific needs.

Model Number		DLDTMF-900	DLDTMF-1200	DLDTMF-1800
R.P.M of polishing head	r/min	560	560	560
Traverse feeding speed of polishing head	mm/min	0-5600	0-5600	0-5600
Lengthways feeding speed of Polishing head	mm/min	0-4300	0-4300	0-4300
Supplied by User	MPa	0.35-0.5	0.35-0.5	0.35-0.5
Required air source	m³/min	0.15-0.30	0.15-0.30	0.15-0.30
Output	m²/h	2-2.5	2.5-3	3-3.5
Max. polishing size (L x W x H)	mm	3000*900*120	3000*1200*120	3000*1800*120
Overall dimensions (L x W x H)	mm	6500*2200*2000	6500*2500*2000	6500*3100*2000
Main motor power	KW	15	15	15
Water consumption	m³/h	4	4	4
Approximate weight	kg	2000	2500	3000

Production Site

Packaging & Shipping
Company Profile
Quanzhou Dialead Stone Machinery Co., Ltd. is a high-tech enterprise founded by Dialead Stone Tools, together with several domestic well-known engineering colleges, stone machinery technicians and software system companies. Dialead Stone Machinery main products include five-axis bridge cutting machine, four-axis bridge cutting machine, stone copying machine, baluster machine, engraving machine, block cutting machine, polishing machine and etc. With constant technology innovation, stone processing industry has now developed to intelligent automatic processing from initial rough processing. Dialead is always devoted to the improvement of its technology and making contribution to the development of the industry.
Engaged in the production of stone tools (diamond segment, saw blade, engraving knives, stone polishing abrasives) for more than 20 years, Dialead has a good knowledge of stone tools and specific needs of different markets. When it comes to stone machinery, Dialead can well match its stone machines with its stone tools to achieve the best processing effect. This is what tells Dialead apart from other stone machinery suppliers in China.
With complete R & D and production system, Dialead is seeing its sales map bigger and bigger. For domestic market, Dialead Stone Machinery has set up offices in many cities. For international market, Dialead products are exported to more than 60 countries and regions, such as Russia, the United States, Ukraine, Kazakhstan, India, Poland, Jordan, Oman and etc.
Dialead attaches great importance to intellectual property and certification in its development. Dialead has obtained more than 30 patent and more is in the way. All Dialead machines are CE certified to make sure all details meet international standards.
Certifications
Exhibition

FAQ

---
