Flute a/B/E 3/5/7 Layers Corrugated Paperboard Production Line with Factory Price

Product Description

Product Description

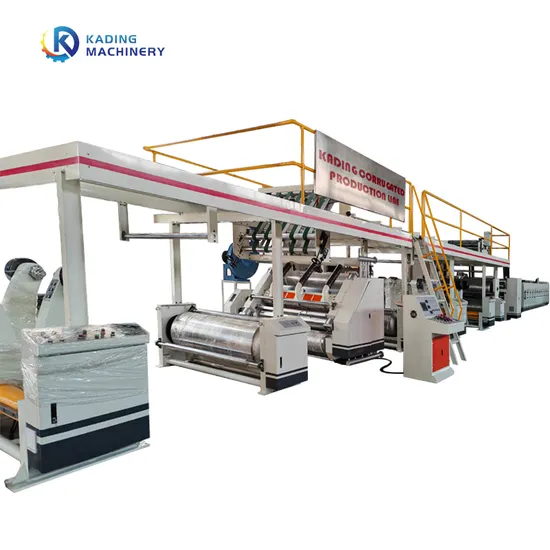

A/B/E Flute 3/5/7 Layers Corrugated Paperboard Production Line for Carton Box Making
Corrugated cardboard production line is the professional equipment for producing corrugated cardboard .The production line consists of the Mill Roll Stand, liner(medium paper ) Pre-heater, Single facer machine ,Conveyor bridge , Gluing Machine, Double facer machine , Slitter Scorer , Cut-off , Conveyer and Stacker, Heating System ,Air compression system and Glue Making System and so on.
We produced different grade 3,5,7 ply corrugated production line with different fitting. On the base of understanding the requirements of the customers and the advanced skills at home and abroad, our company has developed and designed these production lines with the speed 60~220m/min, the paper with 1600~2200mm and A,B,C,E UV flute production line can satisfy different customers.
Product Parameters

No.	Name	Details
1	Mill roll stand	Electric mill roll stand , expansion dop top, pneumatioc brake
2	Single facer	vac-sorb,φ320 alloy roller ,cardan drive
3	Feeding paper bridge	Electric adjust deviation,adsorb tension
4	Second gluing machine	Conversion synchronous control
5	Triply pre-heater	φ 800,electric wrap angle (including qualification certificate )
6	Pre-heater	φ 800,land type electric wrap angle (including qualification certificate )
7	Dry formed part	520mm×18 pieces hot plate ,adopt Adopt up and down intensive roller(including qualification certificate )
8	Heat formed part	Adopt up and down intensive roller ,length 8m
9	Feeding paper belt	High quality carton belt , electric promote
10	Thin blade slitter scorer machine	5 blade 8 line , electric Correct error , alloy blade
11	Corss cutter	Computer control cutting cardboard length 500-9999mm; cutting cardboard precision ±1mm
12	Main drive	Main power 25KW
13	Make paste system	Barrel type ,electric stir circulate glue design
14	Stand feeding paper car	Include slipping way
15	Pump	Electric aeration
16	Electric system	One Operate cabinet ,one sinlge facer 1 main drive
17	Steam system	Not including heat source and pipe
18	Gantry stacker	Belt drive type

Cangzhou Kading Carton Machinery Manufacturing Co.,Ltd was founded in 2004 and is located in Dongguang County, Cangzhou City, Hebei Province. We are a manufacturing enterprise that produces carton making machinery.
Our company's self-produced product lines include carton printing machines, carton die-cutting machines, and carton slotting machines; our advantageous products include Carton stitching machines, Folder gluer machines, Flute laminating machines, Single facer machines, etc.
After nearly twenty years of sales and production experience, our product supply chain is already very mature, so we can help customers one-stop purchasing.
In addition to our own foreign trade business, our factory also cooperates with many trading companies, so our products are exported to dozens of countries such as the Middle East, Africa, Southeast Asia, and the European Union, and are well received by the majority. There are also many brand&branded manufacturers among our customers. You are welcome to cooperate with us~!
Q: Are you a factory or a trading company?
A: We are a direct manufacturer that is located in Dongguang county, Cangzhou city. Welcome to visit our factory! We can also have video call if you'd like an online factory tour.
Q: How do you ensure your quality?
A: 1. Trustworthy and long-term cooperative raw material suppliers;
2. Skilled&experienced engineer&workers;
3. Mature QC system;
4. Specially-assigned merchandiser;
5. Advanced production workshop.
Q: How about your after-sale service?
A: 1. Special after-sale team will be 24/7 online;
2. Can guide the installation door-to-door;
3. One-year warranty for spare parts.

---
