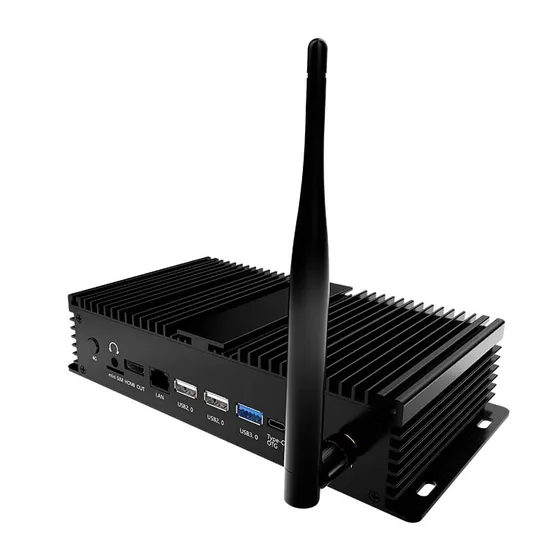

High-Performance Rk3568 4G Ai Edge Computer with RS232 Ports

Product Description

Product Description

System Hardware Configuration	Chipset	RK3568 (A133/RK3566/RK3588 Option)
	OS	Android / Debian
	CPU	Quad-core Cortex-A55 up to 1.8Ghz
	NPU	1TOPS NPU
	Memory	2GB (4GB/8GB Option)
	Storage	16GB (32GB/128GB Option)
	RTC	BIOS Support
	Automatic Startup	BIOS Support, support automatic startup after power on
	POE	802.3AF/AT Option
	HDMI	HDMI video output (4K)
	LED	Green: power-on light; Red: sleep light
Interface	Outer interface of the motherboard	1*Headset (four-segment 3.5mm)
		1*HDMI output
		1*Ethernet LAN port (PoE Function Option)
		2*USB 2.0
		1*USB 3.0
		1*Type-C OTG
		1*DC 12V power input
		1*WiFi Antenna
	Expansion board interface	Mini SIM*1 Option
		1*RS232 serial port
		1*RS485 serial port
		Output 5V*1, 3.3V*1
		2*GND
		4*GPIO
		1*TX2
		1*RX2
		2*Reserved expansion port
		2*USB 2.0 HOST
Internet	Ethernet	10M/100M/1000M adaptive
	3G/4G	Option
	Bluetooth	Support Bluetooth 5.0
	WiFi	2.4G 802.11 b/g/n (5G WiFi Option)
Multimedia	Video	WMV, AVI, RMVB, MPEG, MP4, etc
	Picture	BMP, JPG, PNG, GIF
Technical parameter	Input Voltage	100~240VAC 50/60Hz
	Input Current	0-2A MAX
	Output Voltage	5V
	Output Current	0-2A MAX
Working Environment	Working Temperature	0ºC~40ºC
	Storage Temperature	-20~60ºC
	Humidity	No condensation 0~90%RH

Company Profile
Our Teams:
Certifications
FAQ:
1.Can you accept sample order?
A:Yes.Trail orders are acceptable
2.How long does it take to deliver the sample?
A:It depends on different products,Most models are available. If OEM, it usually takes 10-15 days.
3.What's your Mini Order Quantity(MOQ)?
A:It depends on different products,for AIO products, there's no MOQ,
4.What payment term you can accept?
A:For sample, Trade Assurance or West Union is available,for big order by T/T,West Union.
5.How to ship the goods to us?
A:For sample or small quantity,by Express .Such as DHL, FedEx, UPS etc
For big orders,normally by air or by sea. Also by Express
6.Can we have our own logo printed on the product or package?
A:For sample,it usually be neutral.For big order,it support customized logo & packages..
7.How much will the customized logo cost?
A:For big order, if your quantity up to our MOQ, it usually be free.

---
