2t Remote Control Electric Motor Screw Geared Hook Type Electric Chain Hoist

Product Description

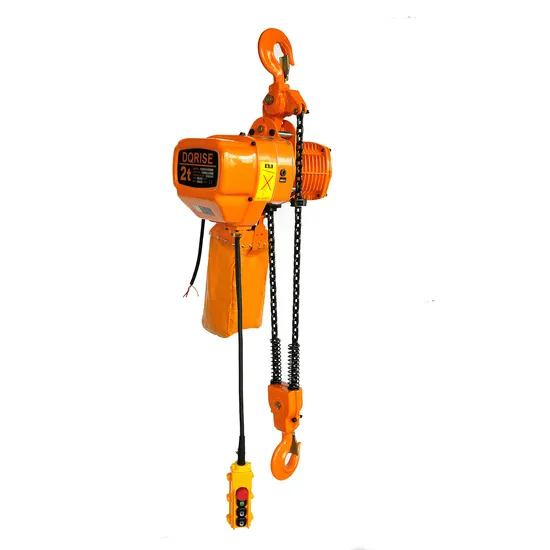

2T Remote Control Electric Motor Screw Geared Hook Type Electric Chain Hoist
Product Description
Chain hoist is a kind of light and small lifting equipment. The electric chain hoist consists of a motor, a transmission mechanism and a sprocket. Electric chain hoists are all produced in accordance with international standards,and all internal gears are quenched at high temperatures, which increases the wear resistance and toughness of the gears, and the gears fit closely.

Electric chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the most important parts of the machine is chain and brake system.
Product Parameters
Technical Parameters

Type	HMKL 0202	HMKL 00501	HMKL 0302	HMKL 0502
Capacity(Ton)	2	0.5	3	5
Lifting Height (m)	3/9	3/9	3/9	3/9
Lifting Speed(m/min)	3.3	6.8	4.4	2.7
Lifting motor
Power(Kw)	1.5	0.75	3	3
Rotation Speed(r/min)	1440	1440	1440	1440
Phases	3	3	3	3
Voltage(V)	380	380	380	380
Frequency (Hz/s)	50	50	50	50

Size specification

Type	Unit(mm)											Chain
	H	A	B	D	E	I	J	K	L	M	N
HMKL0202	835	520	260	300	236	Φ49	40	Φ49	40	30	30	Φ7.1
HMKL00501	540	455	240	285	165	Φ34	28	Φ34	25	19	19	Φ6.3
HMKL0302	950	615	295	430	320	Φ59	48	Φ59	48	35	35	Φ10
HMKL 0502	1030	615	295	430	325	Φ60	48	Φ60	48	43	43	Φ11.2

Detailed Photos
Push button:
Waterproof push button is applied. It is light and durable.
Hook:
It is hot forging with perfect strength that is hard to break. The operation safety of the lower hook is ensured by its 360 degrees rotation and safety tongue piece.
Chain:
ultra heat-treatable steel alloy chain.
It can be safely used in poor environments such as rain sea water and chemicals
Low wear and corrosion protection
Company Profile
Our company specializes in producing electric chain hoists. It absorbs the advanced product development and design concept of the world crane industry, adopts a large number of new technologies, and has the advantages of low noise, light weight, compact structure, advanced technology, superior performance, safe and simple operation, easy installation and maintenance, etc. The product is widely used in various industries such as material handling, mechanical processing, mold development, industrial automation assembly lines, product assembly, and wind power generation.
Dongqi Heavy Industry adheres to the business philosophy of "integrity, innovation, professionalism, and win-win", and takes social responsibilities such as caring for the environment, giving back to society, and caring for employees as its own responsibility. Dongqi Heavy Industry has fully entered the ranks of modern crane production and become a star enterprise with strong competitive strength in the industry. Dongqi is willing to work together with friends to create a better tomorrow for the lifting industry!
FAQ
Q1. how can we guarantee quality?
A2:Always a pre-production sample before mass production;
Always final Inspection before shipment;

Q2: What do i need to offer when purchasing electric chain hoists from you?
A2:There are some necessary parameters about the electric chain hoists so you can tell us the lifting height,loading weight,span and other details you have. We can offer you a best solution.

Q3:Whether you can offer customized electric chain hoists?
A3:Of course,we are manufacturer, and we have our own engineer R&D group. They can work out customized design according to your requirement. The most importantthing is that you tell us what you need.

---
