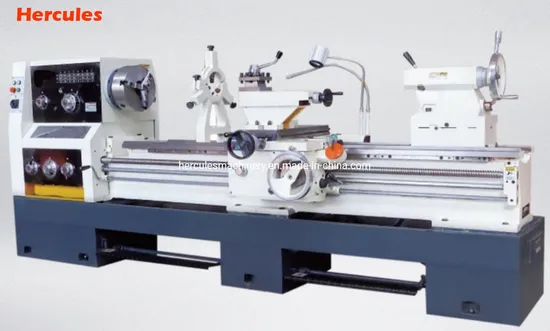

| Specification | Unit | CP6150L |
| Swing over bed | mm | 500 |
| Swing over cross slide | mm | 300 |
| Distance between centers | mm | 1000,1500,2000,3000,4000,5000 |
| Swing in gap | mm | 710 |
| Width of gap | mm | 240 |
| Width of bed | mm | 390 |
| Spindle nose | | D8 |
| Spindle bore diameter | mm | 105 |
| Morse taper of spindle center | | 1:20 |
| Spindle speed | rpm | 6-1120 (24 steps) |
| Max output torque of spindle | N.m | 1500 |
| Range of longitudinal feed | mm/rev | 0.063-6.43 (0.0025-0.25in/rev) |
| Range of cross feed | mm/rev | 0.027-2.73 (0.00106-0.107in/rev) |
| Lead screw pitch | | 12mm(metric system)/2 t.p.i(inch system) |
| Metric threads | mm | 1-224 (46 kinds) |
| Inch system threads | t.p.i | 28-1/8 (42 kinds) |
| Module threads | | 0.5-112mm (42 kinds) |
| Diameter pitch threads | | 56-1/4DP (45 kinds) |
| Cross slide travel | mm | 340 |
| Top slide travel | mm | 150 |
| Section specification of tool post | mm | 25×25 |
| Longitudinal rapid traveling speed | m/min | 4.5 (50Hz) / 5.4 (60Hz) |
| Transversal rapid traveling speed | m/min | 1.9 (50Hz) / 2.3 (60Hz) |
| Morse taper of tailstock center | | M5 |
| Max travel of tailstock quill | mm | 150 |
| Tailstock quill diameter | mm | 75 |
| Main motor | kw | 11 |
| Rapid travel motor | | 250W/1360rpm |
| Coolant pump motor | | 90W/25L/min |
| Hercules Machinery Equipment Ltd. |
3. Chip guard for L≤2m lathe; Follow Chipe guard for L≥3m lathe
11. Damping washer
